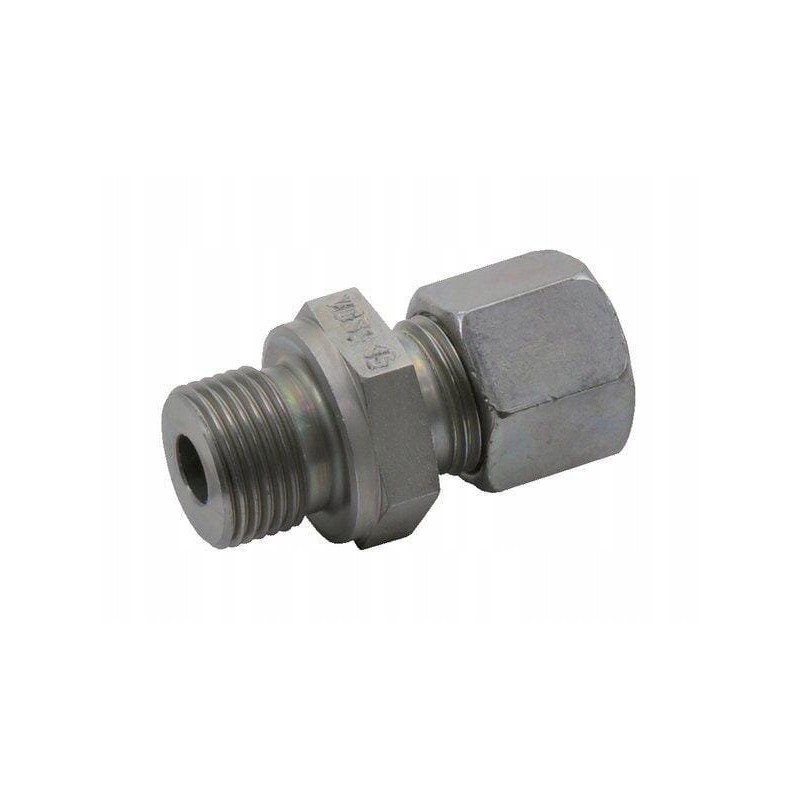

Straight screw-in connector gev6lr14 voss

Straight screw-in connector Parameters

Part number: GEV6LR14

Unit: piece

Manufacturer: Voss

Shape: Straight – 2 sides of the connection

Connector type: Cutting ring

Connector type - male/female: Female

Connection diameter: 6 mm

Connector thread diameter: M12

Connector thread length [K]: 12 mm

Connector No. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Wrench size for connector [S1]: 14 mm

Connector type no. 2: Thread

Connector type no. 2 - male/female: Male

Connector No. 2 Thread Diameter: 1/4 inch

Connect No. 2 Thread Type: BSP

Connector No. 2 Wrench Size [S2]: 19 mm

Pipe diameter: 6 mm

ISO standard: 228

Max working pressure: 400 BAR

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

Technical information

- Available on request in a stainless steel version

Dimension from the axis of the connector to the end of the next connector [L2]

23.5 mm

Dimension from the axis of connector no. 2 to the end of the next connector [L1]

9 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
