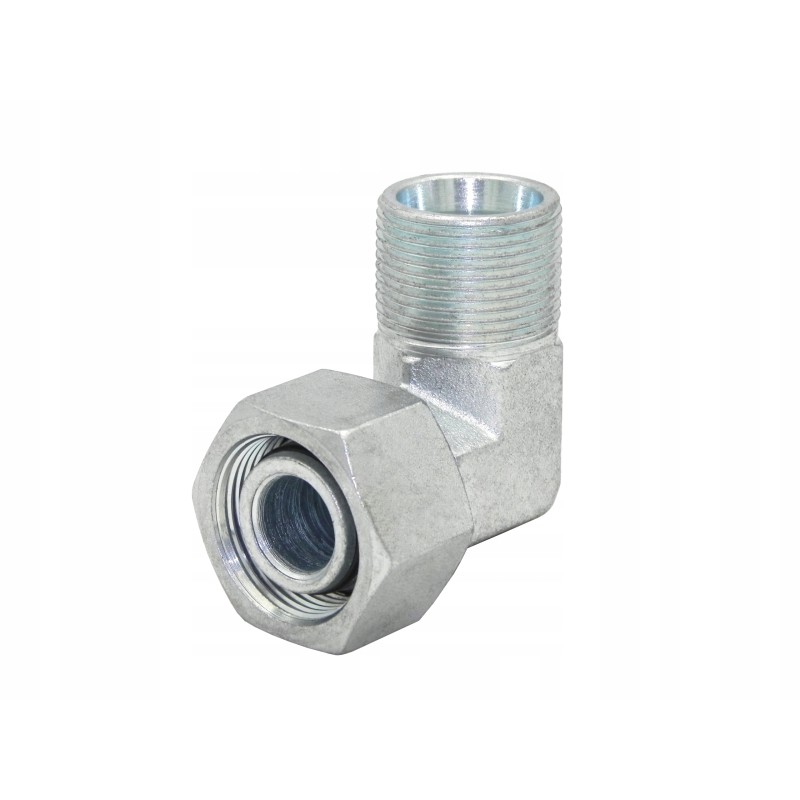

Hydraulic elbow connector with nut M24x1 5 16s
  • Hydraulic elbow connector with nut M24x1 5 16s
  • Hydraulic elbow connector with nut M24x1 5 16s

Hydraulic elbow connector with nut M24x1 5 16s

15010425514794
£13.30
Quantity
5 Items

Description
HYDRAULIC ELBOW CONNECTOR WITH NUT M24x1.5 16SApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow joint with conical self-sealing clamp when tightening. Designed to connect two hydraulic hoses or to connect with other connectors with the same cone system.

Technical data:

Thread on one side: external metric M24x1.5 16S - heavy standard< p>

Thread on the other side: internal metric M24x1.5 16S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Type liquid: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of hydraulics force. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010425514794
KN M24 16S
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KN M24 16S
