Hydraulic hose cable aa dn12 m22 0 5m 160bar

Hydraulic hose AA 12/1 M22x1.5, 1-braid (1SN), 160 Bar, L-500 mm Flexible hydraulic hoses, next to rigid seamless pipes, are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose made on the basis of the North-Fighter hydraulic hose meets the EN 853 1SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 180 Bar.

Hose specifications:

internal diameter: 12.5 mm, 1/2', dash: -08

outer diameter: 19.5 mm

inner layer: synthetic rubber

reinforcement: 1 steel wire braid

outer layer: synthetic rubber

working pressure: 160 Bar

burst pressure: 640 Bar

bending radius: 180 mm

temperature range: -40 °C +100°C

standard: EN 853 1SN

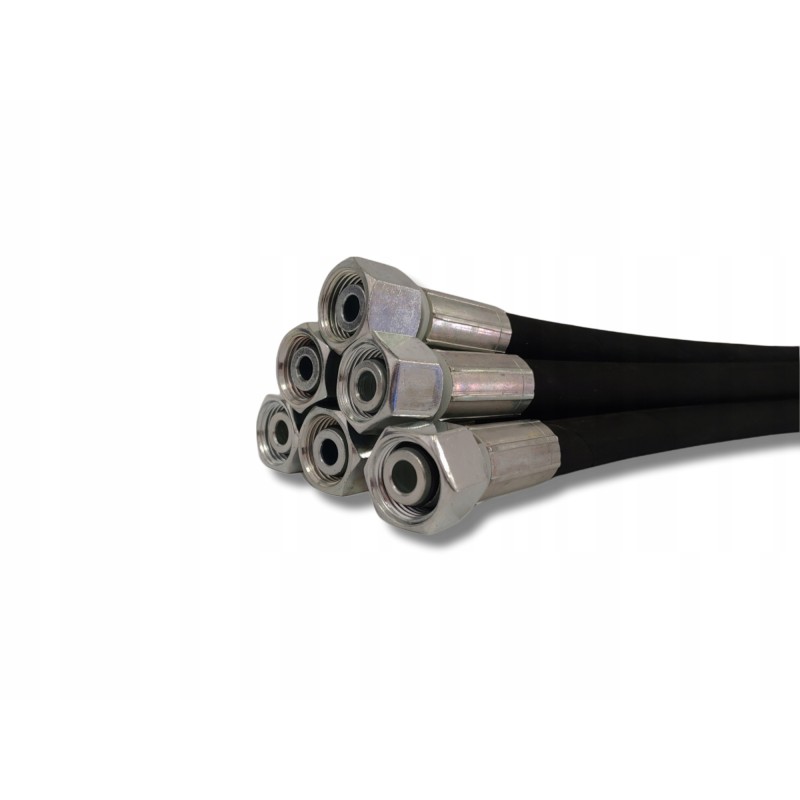

Cable crimped on both sides with DKOL straight metric terminals with internal thread M22x1.5 15L (nut).

Cable specifications:

length L - 500 mm

end 1: DKOL M22x1.5 15L

end 2: DKOL M22x1.5 15L

On other auctions available cables in lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000, 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 4500 , 5000, 6000, 7000, 8000, 9000 and 10000 mm.

We are able to produce a hose in any required size!

All our hydraulic lines are cleaned at the appropriate stage of production, thanks to this way, the user can be sure of receiving a product ready for installation and long-term operation! To be able to determine the flow value of a given hose dimension, you must use the appropriate table (see below).

The data is selected depending on the type of hose:

pressure (supply) line

suction or return line

To determine the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is applied to the flow value (left ruler) , the second to the flow velocity value (line's law) depending on the place of use of the pipe.

The flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters you need to select the average value from a given range, rounding the cable dimension to the full size above the indication.

When designing and selecting cables for a given system, you also need to pay attention to:

twist angle of the ends, this is used in the case of the following types of hoses: elbow: elbow, eyelet: eyelet, elbow-eyelet

selection of the appropriate type of fitting depending on the location and working position of the cable

selection of the bending radius of the hose

avoiding twisting of the hose during installation, which may cause its premature wear

proper protection of the hose against premature wear.

We offer many varieties of hydraulic fittings and hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here! Our cables are manufactured on the basis of the received order!

The return of ordered products is possible after prior acceptance by the seller. Otherwise, 50% of the value of the goods will be refunded!
