Hydraulic motor sms 160 o4w32 p90 hydrolider

CHARACTERISTICS AND ADVANTAGES OF SMS ENGINES PRODUCED BY HYDROLIDER: New generation reinforced bearing - a new type, large reinforced tapered roller bearing replacing the old and emergency solution with two small bearings. The modern design provides even greater possibilities of transferring lateral and eccentric stresses.

Two relief and return valves - protect the engine in both directions of rotation, significantly extend the service life, support and improve the effectiveness of seals on the shaft, protect the engine when operating in unfavorable conditions conditions.

High quality seals - allow operation at higher pressures, additionally protect against oil leaks and lateral stresses.

Solid body - made of a special metal alloy, ensures quiet operation even at heavy loads. It allows operation in all conditions indoors and outdoors.

The design of SMS motors is based on the GEROLLER system involving the use of reinforced roller bearings inside. The rollers provide the highest resistance to overloads and long engine life. Roller motors are recommended for systems that operate in difficult conditions, during long, uninterrupted work in agriculture and industry.

ATTENTION! The cheapest engines offered on the market are not GEROLLER, they do not have roller bearings, only rigid bushings.

roller bearings instead of plastic inserts

possibility of connecting in series and parallel

high starting torque and smooth operation immediately after starting

high resistance to axial and radial forces

simple installation

low noise level

long service life even under difficult conditions of use

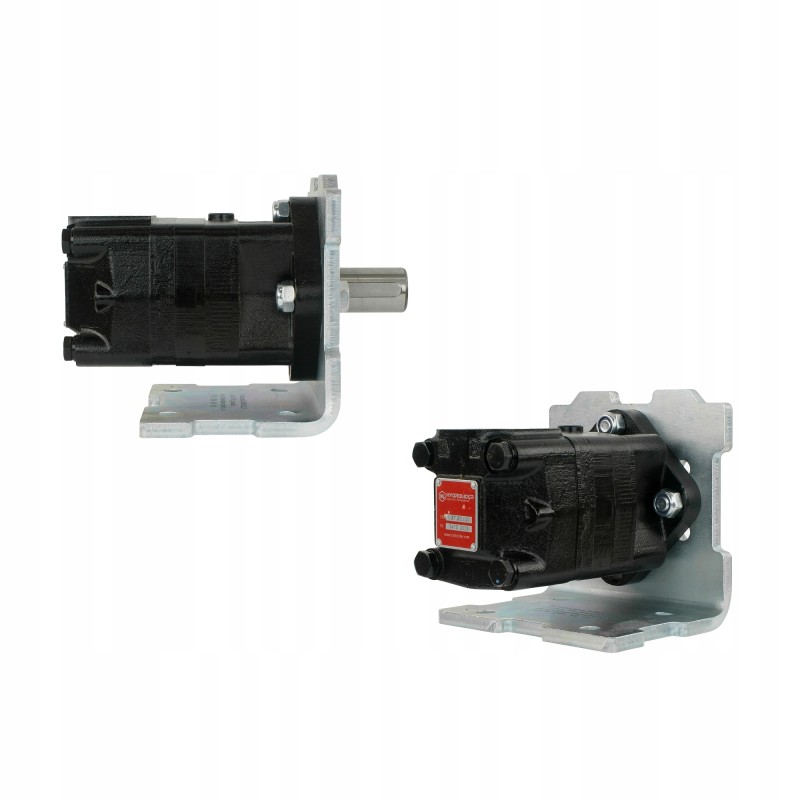

SMS 160 HYDRAULIC MOTOR INCLUDED WITH MOUNTING PLATE 90º ANGLE ABSORPTION: 160cm3/rev, SHAFT: 32mm, SPEED: 475rpm

Production:

Original product of the Hydrolider brand, symbol: 1.37.20.160.4

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Recommended use:

Wrappers, forage harvesters, spreaders

Sweepers, sand spreaders, snow throwers

Trimmers for carrots, beets, onions and others

Leaf and branch clearers

Conveyor drives

Chippers and branch shredders

Forest winches and winches for vehicles

Orchard drilling rigs and drilling rigs for holes in the ground

Technical data:

Direction of rotation: double-sided

Internal threads in the body: 1/2'

Ports: side connection

Body material: cast iron

Maximum parameters in continuous operation:

Maximum flow: 75 l/min

Maximum rotation speed: 475 rpm

Maximum pressure: 17 MPa (170 bar)

Maximum power: 15.5 kW

Maximum torque: 38 daNm (380 Nm)

Maximum parameters in momentary operation max 6 sec/min:

Maximum flow: 115 l/min

Maximum rotation speed: 730 rpm

Maximum pressure: 24 MPa (240 bar)

Maximum power: 21.3 kW

Maximum torque: 53 daNm (530 Nm)

Oil types recommended by AGRICOLA:

Thin high-quality oil: LOTOS AGROL BOXOL 26

Medium-thick high-quality oil: AGRO OIL L -HL 32

Thick high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40ºC to +80ºC

Permissible oil temperature: -15ºC to +80ºC
