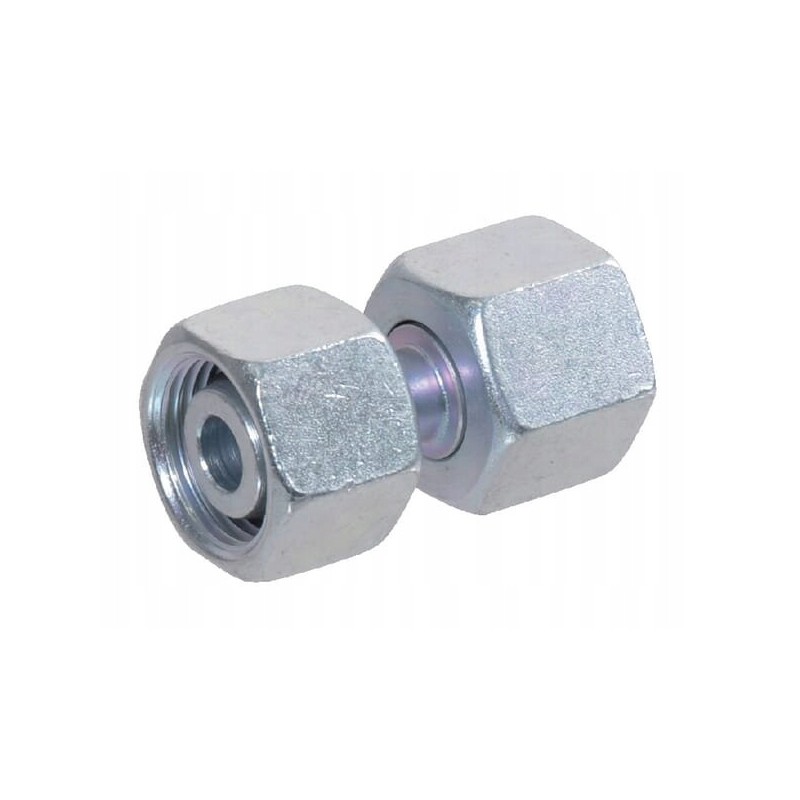

Straight connector with nuts m16x1 5 10l m18x1 5 12l

Straight connector with nuts M16x1.5 10L - M18x1.5 12L Parameters

Part Number: GVO10L12L

Unit: Piece

Manufacturer: Dietzel

Shape: Straight - 2 Sides Connector

Connector Type No. 1: Swivel Nut

Connector Type No. 1 - Male/Female: Female

Connector No. 1 Thread Diameter: M16

Surface Treatment : Zinc plated

Max. working pressure: 315 BAR

Thread pitch of connector no. 1 [M1]: 1.5 mm

Series: L

Thread type of connector no. 1: Metric

Type of connector no. 2: Swivel nut

Type of connector no. 2 - Male/Female: Female

Connector No. 2 thread diameter [M2]: M16

Connector No. 2 thread pitch [M2]: 1.5 mm

Connector No. 2 thread type: Metric

DIN standard: 2401

Specifications

- Pre-assembled O-ring Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

It consists of

- Main part

- Union nut

- Sealing cone with self-sealing ring Technical information

- Available on request in a stainless steel version - Viton

gasket available on request - Galvanized without CR6

Pipe diameter

- 12 mm

- 10 mm
