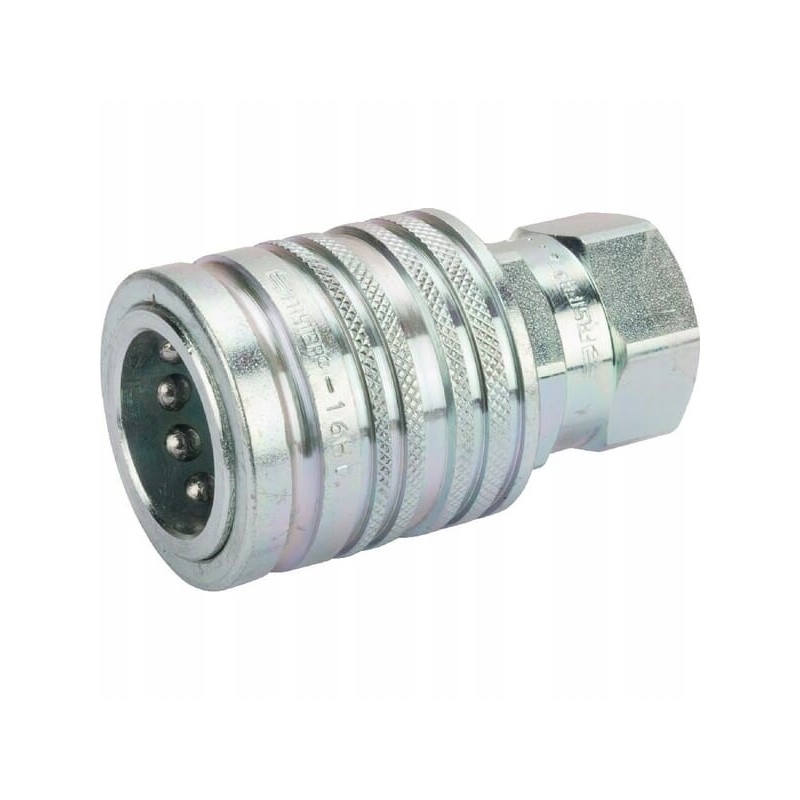

Quick connector PVC socket 1 2 internal m22x1 5 15l

Quick connector PVC socket 1/2 internal thread M22x1.5 15L INDEX: CPV0802215F

Material: Carbon steel

Technical information: - Connection is made by pressing the plug (one-handed operation)

Features: - Push & Pull principle - Axial actuation of the locking sleeve in both directions (double-sided action) - Tear-off function - Induction hardening in places exposed to rapid consumption

Valve type: Mushroom head

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Mineral oil-based fluids

Size: 12.5mm

Outside diameter: 38mm

ISO standard: 7241-A

Series: CPV

Connection diameter: 38mm

Surface treatment: White passivated

Connector thread type: Metric

Total length: 66.3mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 252.7g

Working pressure: 250BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press, to connect

Connection No. 2 thread pitch: 1.5mm

Disconnection method: Pull to disconnect

Connector No. 2 type: Thread

Connection No. 2 thread diameter: M22

Size (code): BG 3

Connection No. 2 thread type: Metric

Flow at 2 bar: 75 l/min

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Female

Connector no. 1 thread diameter: 22 mm

Connector no. 1 thread pitch: 1.5 mm

Wrench size connector no. 1: 27mm
