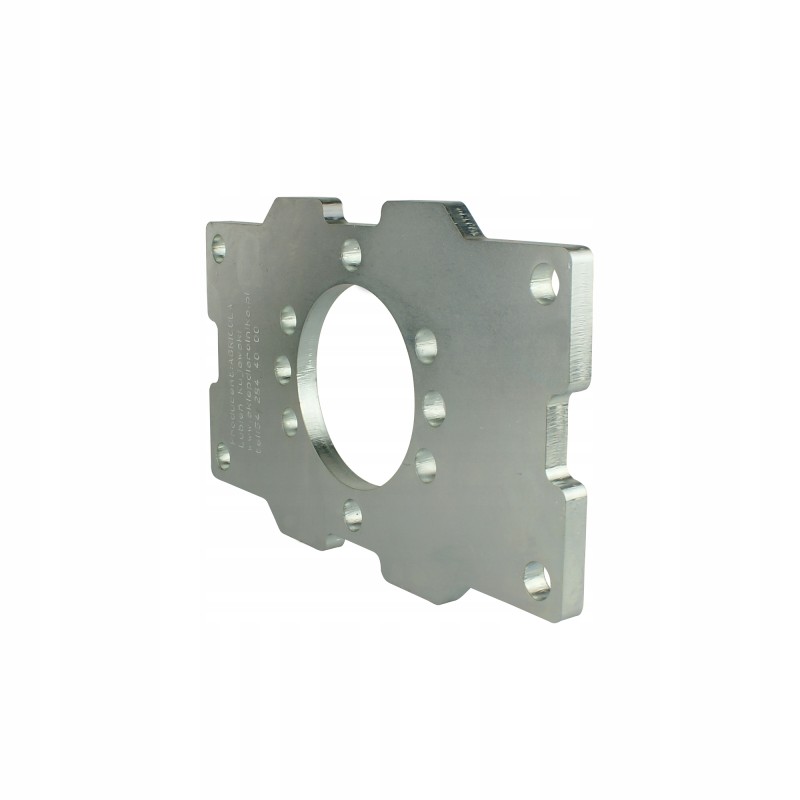

Flange mounting for BMR SMS hydraulic motor

MOUNTING COLLAR FOR BMR and SMS ENGINE Production:

Original product of the Hydrolider brand, symbol: 1.37.10.600

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Universal weldable plate placed on the centering flange hydraulic motor. Stabilizes operation and helps in mounting the engine to other metal structures.

Technical data:

material: weldable steel

dimensions: 250 mm x 130 mm

diameter of the hole for the centering flange: 83 mm

spacing of mounting holes on the engine: 104.6 mm

diameter of holes for twists with the engine: 13.5 mm (8x)

diameter of mounting holes: 13 mm (4x)

Integration:

the sheet fits engines with a centering flange with a diameter of 83 mm, including: for the entire series of hydraulic motors with symbols: BMR, SMR, BMP, OMP, EMP with a flange mounted on 2, 4 or 6 holes, among others. such as (photo):

Also fits a series of slightly larger engines with symbols: SMS, OMS, OMSS, OMR, OMZS, MS, BMS with a flange mounted with 4 holes, among others. such (photo):
