Pav131345 tip dn13 13 16 orfs 45

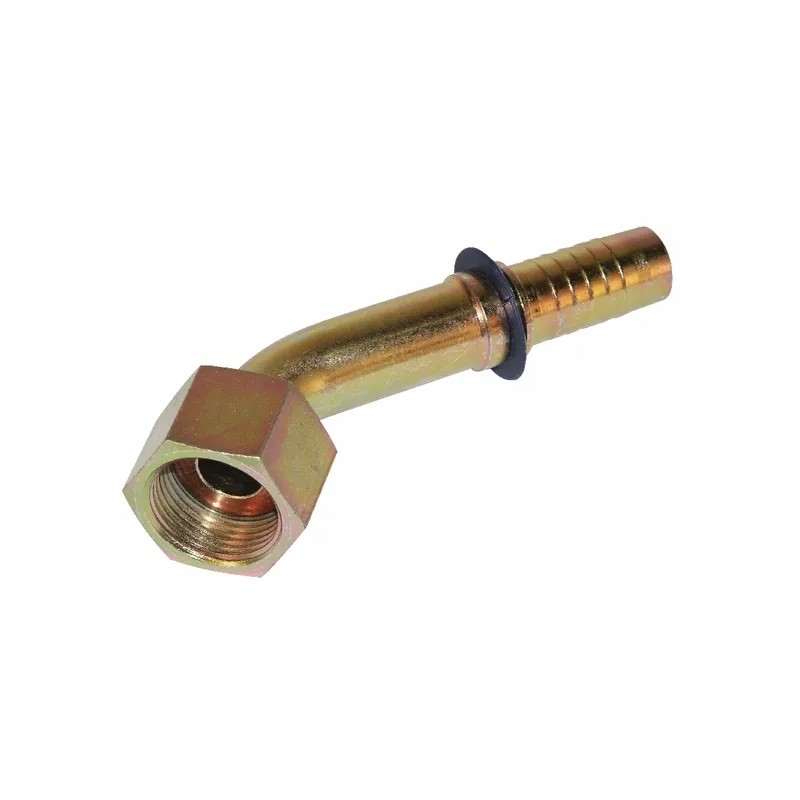

PAV131345 Adapter DN13-13/16 ORFS-45°Product details

O-ring

Shape

Elbow - 2 sides of the connection

Connector Type No. 1

Swivel Nut

Connector Type No. 1 - Male/Female

Female

Connector Type No. 1 - code

ORFS

Connector thread diameter

13/16 inch

Connector thread type

UNF

Wrench size for connector no. 1

27.0 mm

Connector type no. 2

Hose connector

Connector type No. 2 - Male/Female

Male

Connection No. 2 Diameter

1/2 inch

Connection No. 2 Diameter

13 mm

Dimension from the axis of the joint to the bottom of the next joint

47.1 mm

Dimension from the axis of joint no. 2 to the end of the next joint< p>

16 mm

Angle

45 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1222441-08080M

Connection

UNF union nut with flat seal (ORFS)

Application

Only for flat seals (ORFS)
