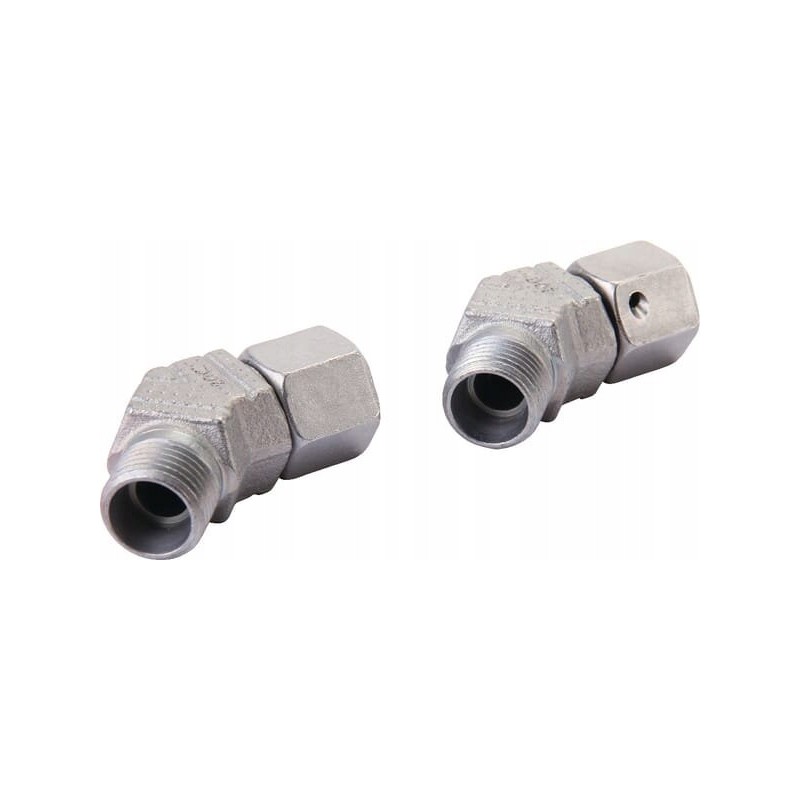

Elbow connector 45 with nut m22x1 5 15l evsd15

45° elbow connector with nut M22x1.5 15L Parameters

Part number: EVSD15L

Unit: piece

Manufacturer: Voss

Shape: Elbow - 2 sides connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 15 mm

Connector thread diameter: M22

Thread pitch Connector No. 1: 1.5 mm

Connector Thread Type: Metric

Connector Wrench Size: 19 mm

Connector Type No. 2: Conical with O-Ring

Connector No. 2 Type - Male/Female: Female

Connection Diameter No. 2 : 15 mm

Connector No. 2 Thread Diameter: M22

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 27 mm

Pipe Diameter: 15 mm

Length: 17 mm

Angle: 45 °

Max. working pressure: 315 BAR

Series: L

Installation size: 32.5 mm

Thread M: M22x1.5 mm

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Properties

- High corrosion resistance - It has a sealing cone with a self-sealing ring It consists of

- Main part

- The union nut and cutting ring are already mounted - Without separate union nut and cutting ring Dimension from the axis of the joint to the end of the next joint 32.5mm

Dimension from the axis of joint no. 2 to the end of the next joint 24 mm

DIN standard

- 2401

- 2353

Internal diameter

- 12 mm

- 10 mm
