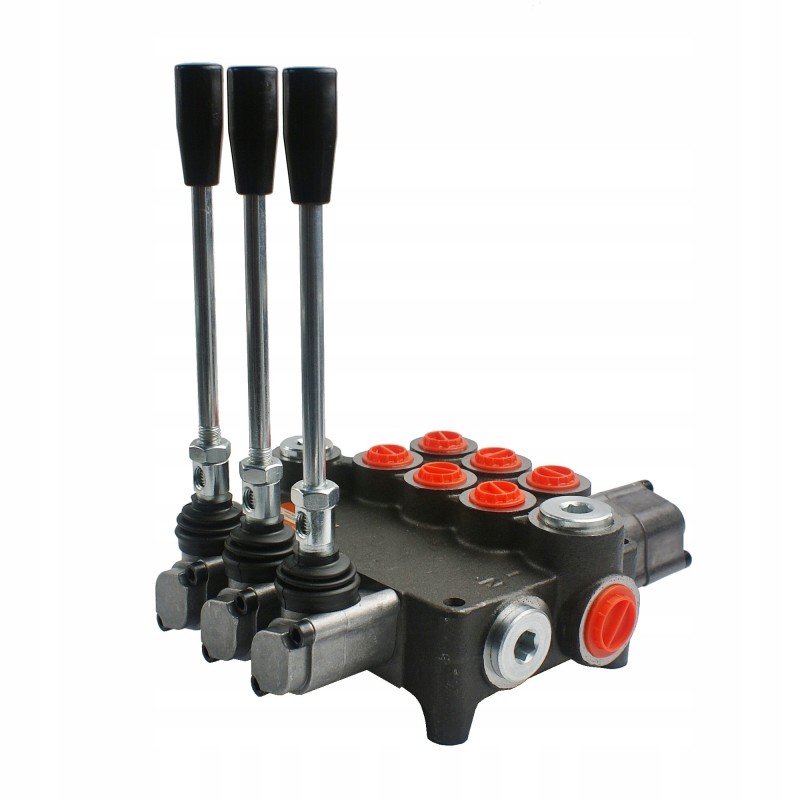

3-SECTION HYDRAULIC DISTRIBUTOR P80 WITH ONE FLOATING SECTION Production:

Original product of the Badestnost Bulgaria brand, manufacturer's symbol: 03P80 A1A1L12 GKZ1, symbol: 1.10.10.033

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Floating section, also known as free flow, used, among others, for snow plows or TUR front loaders. It causes free movement of the piston rod in hydraulic cylinders. Protects against damage elements that have direct contact with the ground, e.g. plow blade.

Technical data:

Recommended oil flow in the system: 0 - 80 l/min. Example control: three double-acting actuators.

Possibility of serial connection to an existing system (pressure sleeve required).

The first two three-position levers (1 - 0 - 2), on a spring , i.e. they return to the vertical on their own:

Position 0 neutral (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in an oblique position forward ) the actuator piston rod extends.

Working position 2 (lever set in an oblique position backwards), the actuator piston rod retracts.

The third four-position lever (1 - 0 - 2 - 3), three positions (1 - 0 - 2) on the spring (the lever returns to the vertical position by itself), position (3) floating on the latch (the lever stops in the floating position):

Position 0 neutral (lever set vertically ) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position), the actuator piston rod extends.

Working position 2 (lever set in a diagonal position) backward) the actuator piston rod retracts.

Floating position 3 with a latch (lever set in the maximum forward position) the actuator piston rod works freely, extends and retracts freely under the influence of the forces.

On the right side, hydraulic diagram of the distributor:

Connection:

Supply from the pump (P1, P2): BSP 1/2'' internal thread

Back to tank (T1, T2): BSP 3/4'' internal thread

Sections (A1, A2, A3, B1, B2, B3): BSP 1/2'' internal thread

Series connection (N): BSP 3/4' internal thread

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 20 l/min

190 bar at 40 l/min

200 bar at 60 l/min

210 bar at 80 l/min

Precision pressure measurement kits can be found in the section Pressure gauges - measuring sets

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Recommended by AGRICOLA oil types:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:< p>

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
