3-section cable splitter joystick solenoid valve

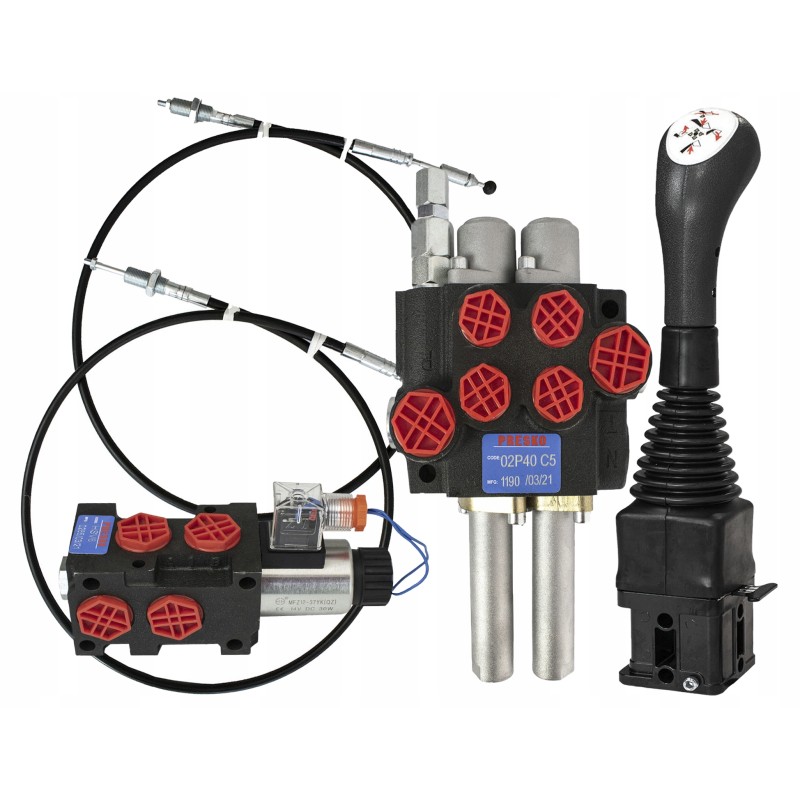

2-SECTION HYDRAULIC DIVIDER 40l WITH JOYSTICK, CABLES (2x2m) AND SOLENOID VALVE - SET * Durable hydraulic distributor (40l) by PRESKO - set with cables and solenoid valve (12v, 50l). The distributor is successfully used in agriculture, horticulture, construction and forestry.

It is used in many machines and vehicles with a hydraulic system. It allows you to connect a hydraulic system located outside the cabin with a joystick located in the cabin, making work comfortable and safe.

In a set with cables, a joystick and a solenoid valve used in hydraulic systems as an additional section - usually the third with a 2-section distributor.

Durable and proven design of the set, guarantees failure-free operation of the system for a long time.

Distributors very often used in TURACH and:

- Tractors

- HDS loaders

- Sweepers

- Excavators

- Cyclops

- Forklifts

- Sprayers

- Balers

- Agricultural machines and many others

THE SET INCLUDES:* Durable Presko hydraulic distributor: Technical specifications

Number of sections: 2

Safety valve setting: 180 bar

Maximum pressure: 250 bar

Maximum flow: 40 l/min

Section spacing: 35 mm

Weight: 2.76 kg

Typical application: power hydraulics

The most important features: PRESKO distributors are used by many Polish and foreign producers of agricultural, construction and industrial equipment

Allows for easy serial connection with another distributor using a pressure sleeve - the sleeve is available on our other auctions - it should be screwed into the N port visible in the adjacent photo.

High-quality materials used in production guarantee long and trouble-free operation

Solid and compact monoblock construction

Easy assembly

Equipped with safety valve

* Two cables: 2 x 2m

durable steel cable

thick protective armor

others also available cable lengths

They are used to connect the joystick distributor with the ball system.* SolenoidThe high-quality PRESKO solenoid valve is used in hydraulic systems as an additional section - usually the third one in a 2-section distributor.

Maybe be responsible for controlling the crocodile or gripper.

The solid design of the solenoid valve guarantees long and trouble-free operation.

A solution common in TURACH.

TECHNICAL SPECIFICATION:

- Maximum oil flow - 50 l/min

- Threads (BSP) - 1/2'

- Voltage - 12 V

- Maximum pressure - 315 bar

- Maximum operating temperature -20 +70 °C

* Solid Joystick by PRESKOJoystick with one button, adapted to control ball-ended ropes

Durable structure made of high-quality materials

Enables precise control of devices such as a bucket, grapple or crocodile.

Perfect for TOURS, CYCLOPES, FORKLIFTS AND LOADERS

A safety mechanism is used to block the movement of the joystick head

Cable opening - diameter 14mm

* Connection: Serial connection (1) "N": BSP 1/2' internal thread< p>

Supply from the pump (2) ”P”: BSP 1/2'' internal thread

Return to the tank (3) ”T”: BSP 1/2'' internal thread< p>

Section outlet (4): BSP 3/8'' internal thread

Safety valve: (5)
