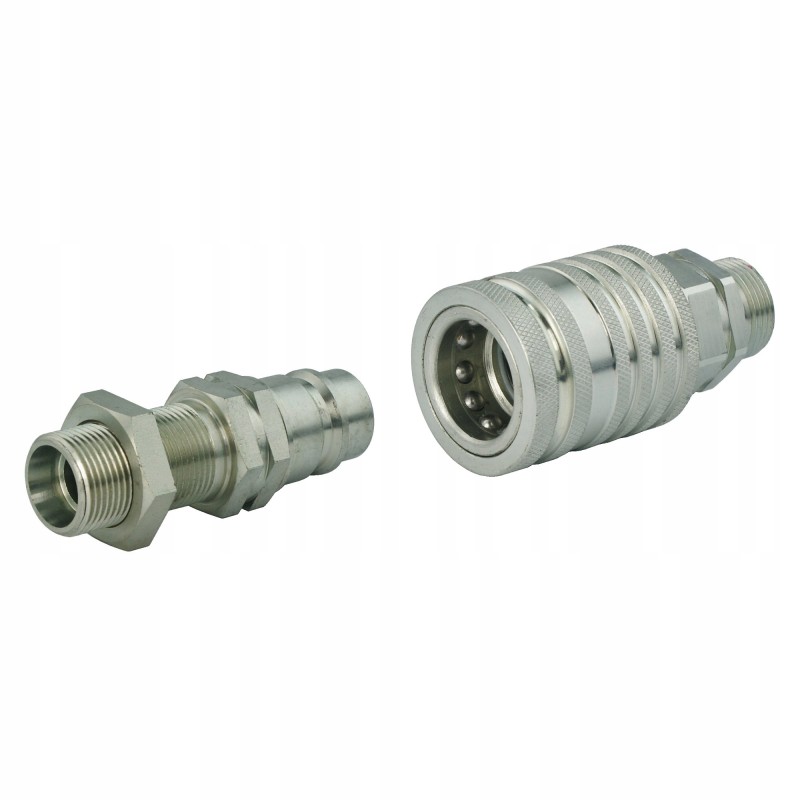

Euro quick connector set, M22 socket, M22 plug

SET OF HYDRAULIC QUICK CONNECTORS LONG BULKPLUG PLUG + SOCKET TYPE EURO THREAD M22x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.60.55.207

Application:

Widely used in hydraulic systems in agriculture, fruit growing, forestry, construction and broadly understood industry.

Fast connectors they are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

Thread diameter M22x1.5 measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Diameter internal [mm]: 20.2 - 20.6

Technical data of the plug:

Thread on the cable side: external metric 22x1.5

Thread type: long bulkhead, external

Nut included: YES

Clamping cone angle: 24° ( typical for the Polish standard)

Quick connector type: euro bulkhead plug ISO standard

Material: galvanized steel

Weight: 0.25kg

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Technical data of the socket:

Thread on the cable side: external metric 22x1.5

Thread type: short, external

Clamping cone angle: 24° (typical for the Polish standard)

Type of quick connector: euro socket standard ISO

Material: galvanized steel

Weight: 0.30 kg

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
