Hydraulic connector, reduction AB 16, 14 angles

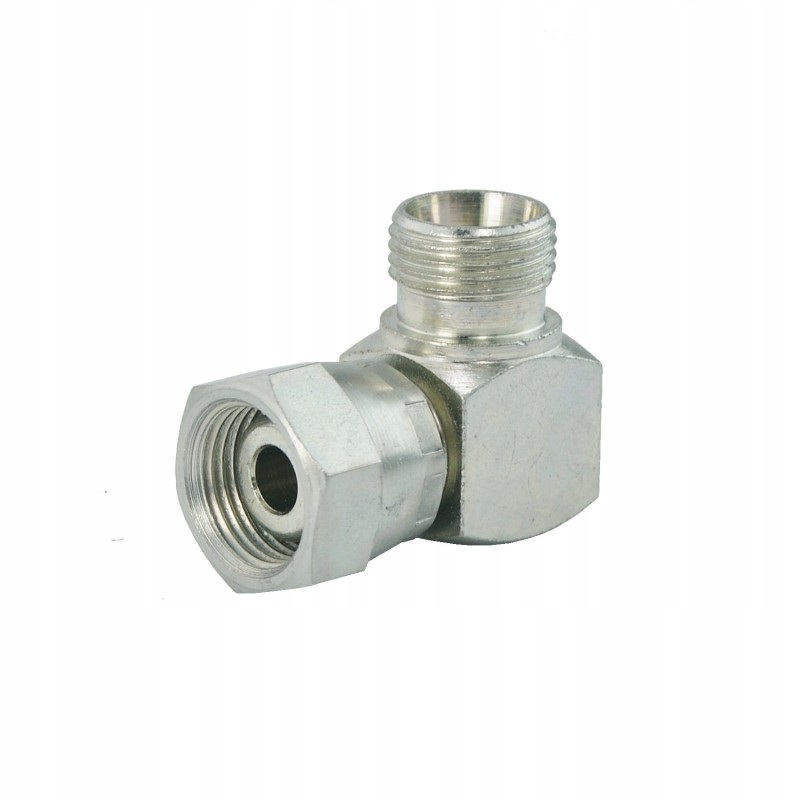

ANGLE HYDRAULIC CONNECTOR AB 16/14 Production:

Hydrolider, symbol: 1.60.04.012

Application:

It is widely used in hydraulic systems in agriculture, horticulture and forestry , construction and broadly understood industry.

Connector, standardized, light version with a conical self-sealing clamp when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6

M14x1.5 thread diameter measured with a caliper:

Diameter outer diameter [mm]: 13.6 - 13.9

Inner diameter [mm]: 12.2 - 12.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 6mm

Thread on one side: internal metric 16x1.5

Thread on the other side: external metric 14x1.5

Version: light

Nominal pressure: 180bar< p>

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
