Measuring set 400bar 1m wt 36x1 5 hydrolider

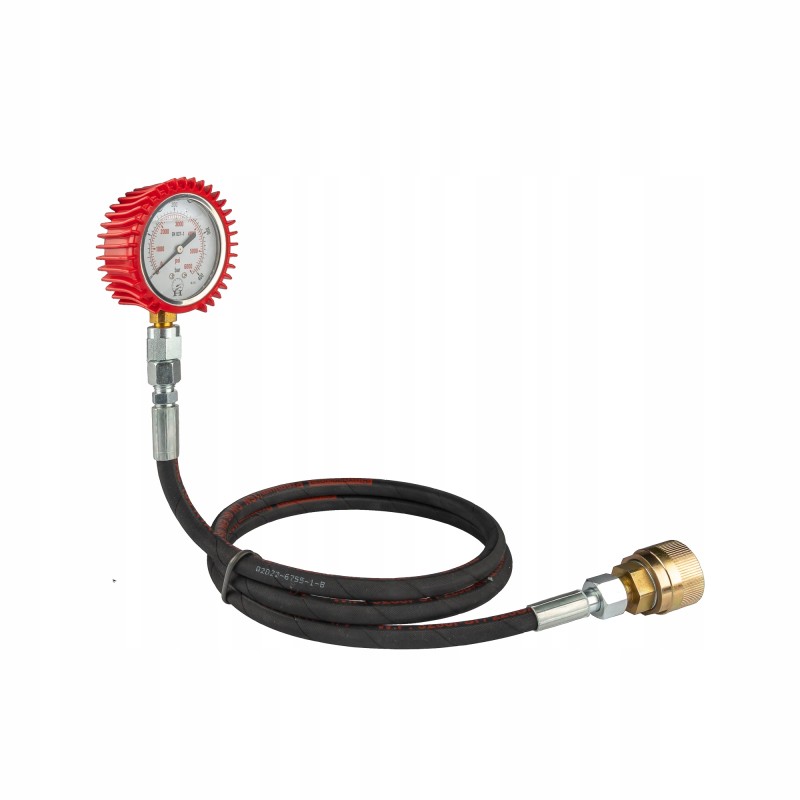

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH 1000mm HYDRAULIC HOSE AND SCREW-ON PLUG PRESSURE MEASURING RANGE: 0-400 BAR Set components:

high-pressure glycerine manometer with a measurement range of 0-400 bar

rubber cover protecting the pressure gauge against damage m

connection connecting the pressure gauge with the hose

high-pressure hydraulic hose 400 bar, 100cm long

quick connector, old-type plug screwed onto a 36x1.5 thread

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.711.3

Application:

Widely used in hydraulic systems in agriculture and construction and industry.

A set designed to measure oil pressure in closed hydraulic systems where there are conditions to develop hydraulic pressure.

The old type screw-on plug allows you to quickly screw into the hydraulic system and check the pressure on the selected line. After screwing the plug into the pressure socket of the tractor or machine, it allows you to check the maximum pump pressure or the setting of the overflow/safety valve.

Technical data:

Pressure measurement range: 0-400 Bar

Outer diameter of the clock: 63 mm

Clock connection port thread [BSP]: 1 /4'

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Quick connector, twisted plug, ISO standard

Quick connector thread: internal M36x1.5

Material:

Housing: steel

Viewfinder: glass

Diagram graphic of the screw-on quick connector (photo):
