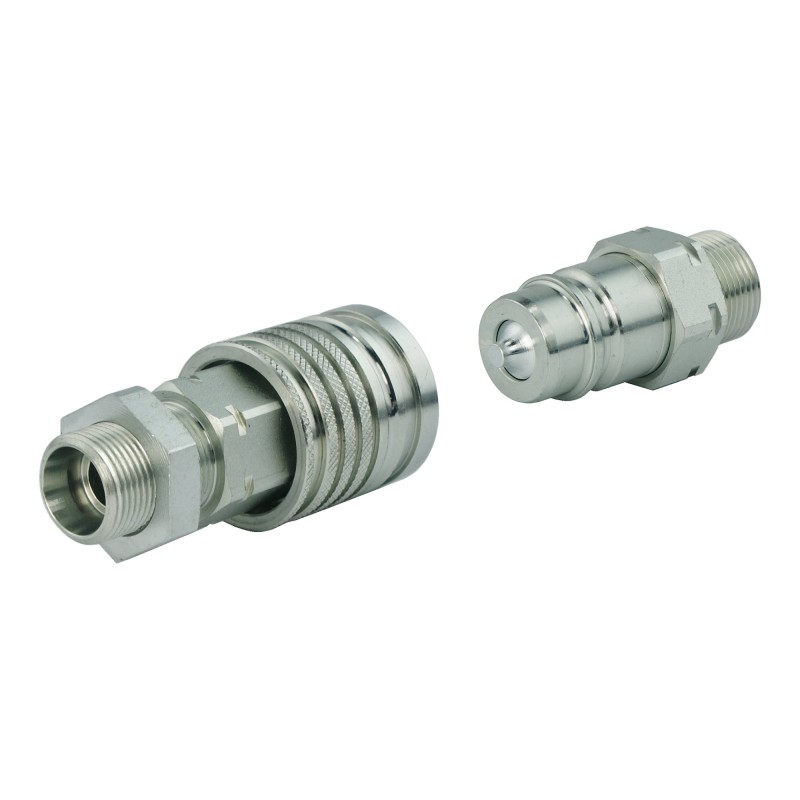

Euro quick connector set, M18 socket, M18 plug

SET OF QUICK HYDRAULIC CONNECTORS LONG BULKBULDEN SOCKET + PLUG TYPE EURO THREAD M18x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.60.55.202

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Fast connectors they are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Diameter internal [mm]: 16.2 - 16.6

Technical data of the socket:

Thread on the cable side: external metric 18x1.5

Thread type: long bulkhead, external

Nut included: YES

Clamping cone angle: 24° ( typical for the Polish standard)

Quick connector type: euro bulkhead socket ISO standard

Material: galvanized steel

Weight: 0.35kg

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Technical data of the plug:

Thread on the cable side: external metric 18x1.5

Thread type: short, external

Clamping cone angle: 24° (typical for the Polish standard)

Quick connector type: euro plug standard ISO

Material: galvanized steel

Weight: 0.20 kg

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
