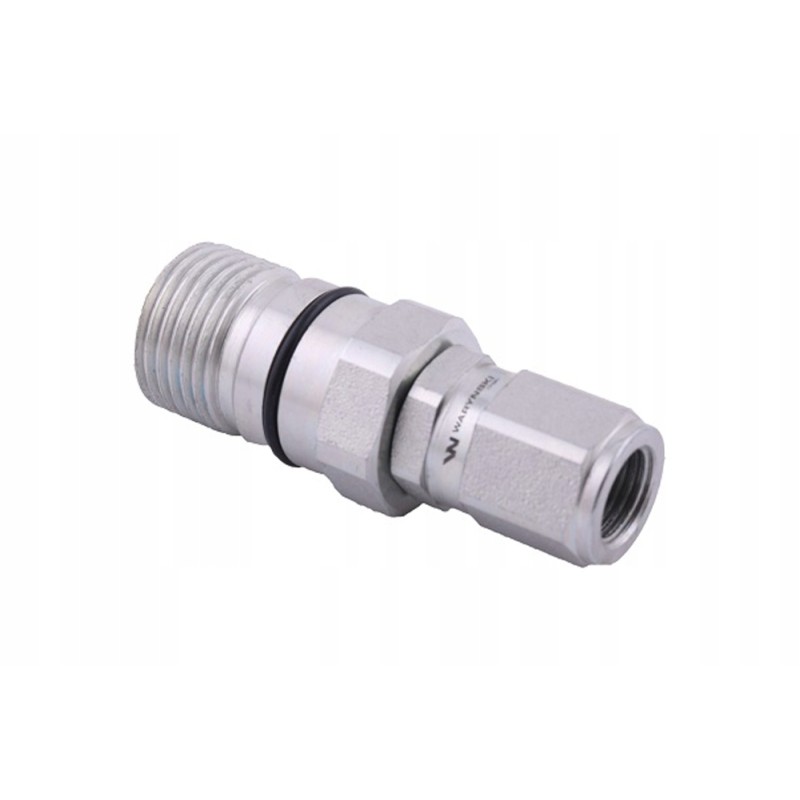

Hydra quick connector, screwed, G1 4 socket, internal

SCREWED HYDRAULIC SOCKET CONNECTOR G1/4''BSP INTERNAL THREAD 350BAR WARYŃSKIHYDRAULIC QUICK CONNECTOR SCREWED SOCKET G1/4''BSP INTERNAL THREAD 350BAR WARYŃSKI

Hydraulic quick connector, screwed socket G1/4' BSP, internal thread 300bar

Waryński. They are designed in accordance with dimensional and quality requirements which specify in detail the operating characteristics and dimensions. They have additional

seal preventing unscrewing of the quick connector in the event of vibrations during operation in the hydraulic system. They are widely used in construction industry and agriculture.

*Specification:

*Operating temperature - from -20°C to +100°C

*Thread - Internal 1/4'

*Max working pressure - 35.0 Mpa / 350 bar

*Type - Nest

*Cone - thread - BSP

*Fits plugs - WDCVV14SW

-️Application:

WDCVV series screwed hydraulic quick connectors are generally used in industrial construction and agricultural machines. They are compatible with other quick connectors from renowned power hydraulics manufacturers.,WDCVV14SW

*Producer: Waryński Original
