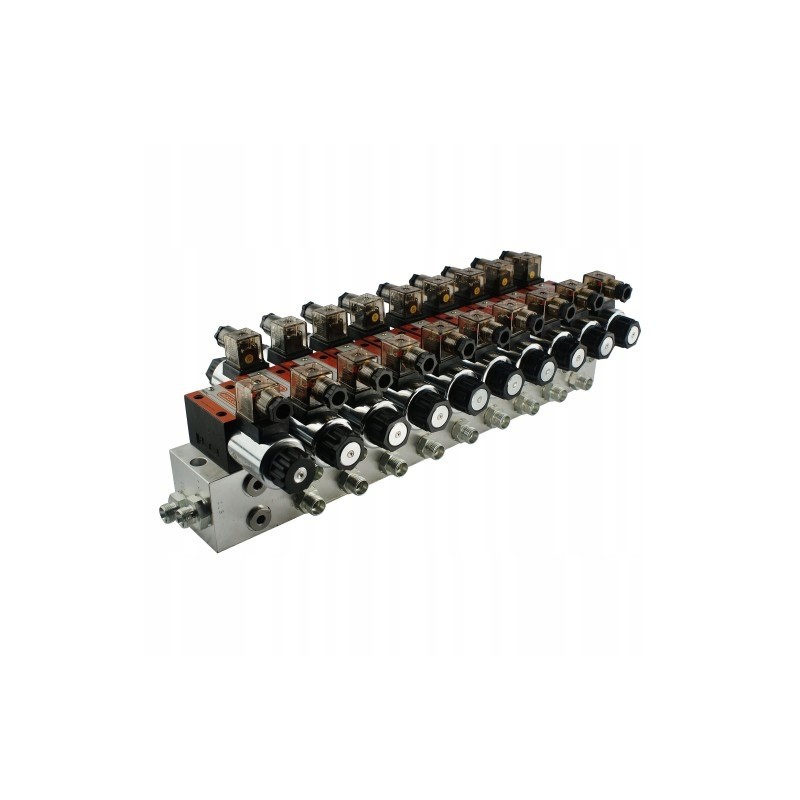

Cetop 3 ng6 9s 230v ha 9xe hydrolider distributor

9-SECTION HYDRAULIC DISTRIBUTOR CETOP 6, ELECTRICALLY CONTROLLED 230VProduction:

Original product of the Hydrolider brand, manufacturer's symbol: 1.10.67.090

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other devices with a hydraulic system.

Technical data:

The set includes a set of connections with an M18x1.5 output and a set of electrical plugs.

Recommended oil flow in the system: 0 - 50 l/min.

Example control: nine double-acting cylinders.

Material:

Distributor body and steel sliders , electrical plugs and plastic tightening nuts, block made of steel or aluminum depending on the batch.

Principle of operation:

The distributor has one starting section and nine working sections. The starting or unloading section is necessary, it is intended to relieve the pump when we do not control any working section of the distributor.

No working section will work if no current is passed to the starting section, therefore the electrical connection must be configured in such a way that each electrical signal sent to the working section must simultaneously reach the starting section.

Control:

The starting section slider is two-position (0 - 1), spring-loaded, i.e. it returns on its own to the neutral position after cutting off the power supply. When the slider is in the neutral position, the oil flows to the overflow, the pump is then relieved.

Principle of operation of the slider:

Position 0 neutral (current supply to the coil cut off) is not possible obtaining pressure on the working sections.

Working position 1 (power supply to the coil open) allows obtaining pressure on the working sections.

The working section slider has three positions (1 - 0 - 2), on spring, i.e. it returns to the neutral position after cutting off the power supply.

Principle of operation of the slider:

Neutral position 0 (the power supply to both coils is cut off) the actuator piston rod is standing - the oil goes to overflow.

Working position 1 (power supply only to the first coil), the actuator piston rod extends.

Working position 2 (power supply only to the second coil), the actuator piston rod retracts.

On the right, hydraulic diagrams, from the top a diagram of the starting section and below a diagram of the working sections:

Current:

Power supply, alternating current (AC) 230V

Connection (internal threads in the body):

Supply from the pump (P): BSP 1/2'' internal thread

Return to the tank (T): BSP internal thread 1/2''

Sections (A1, A2, A3, A4, A5, A6, A7, A8, A9, B1, B2, B3, B4, B5, B6, B7, B8, B9) : BSP 3/8'' internal thread

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

Oil valve factory set to 175Bar

Possibility of self-adjustment, full turn change by 30Bar

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
