Auro joystick set 3 sec cable splitter

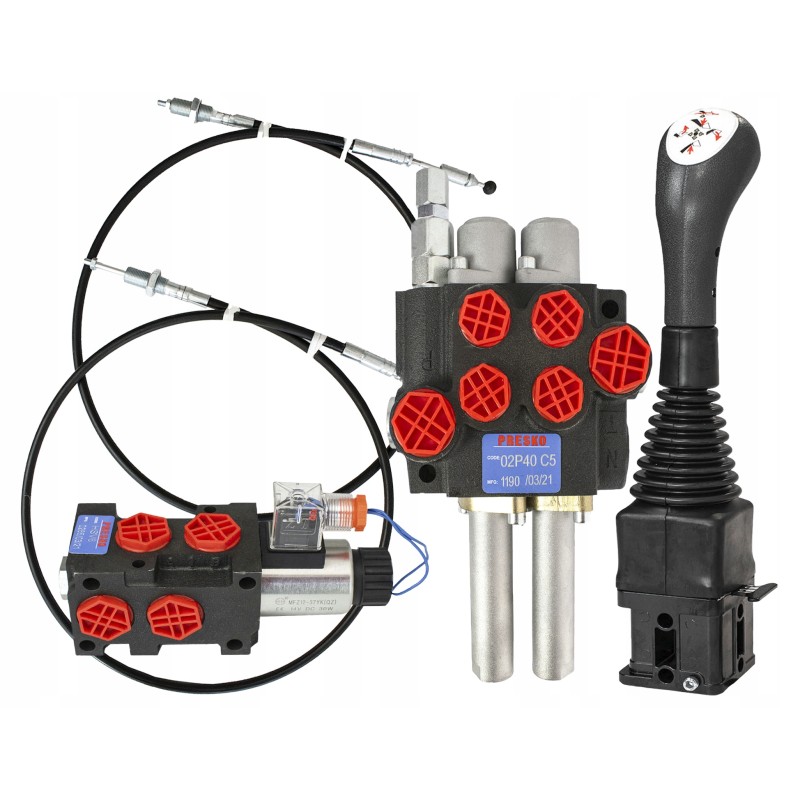

2-SECTION HYDRAULIC DIVIDER 40l WITH JOYSTICK, CABLES (2x2m) AND SOLENOID VALVE - SET Durable hydraulic distributor (40l) by PRESKO - set with cables and solenoid valve (12v, 50l).

The distributor is successfully used in agriculture , horticulture, construction and forestry.

It is used in many machines and vehicles with a hydraulic system. It allows you to connect a hydraulic system located outside the cabin with a joystick located in the cabin, making work comfortable and safe.

In a set with cables, a joystick and a solenoid valve used in hydraulic systems as an additional section - usually the third with a 2-section distributor.

Durable and proven design of the set, guarantees failure-free operation of the system for a long time.

Distributors very often used in TURACH and:

- Tractors

- HDS loaders

- Sweepers

- Excavators

- Cyclops

- Forklifts

- Sprayers

- Balers

- Agricultural machines and many others

Technical specification

Number of sections: 2< p>

Safety valve setting: 180 bar

Maximum pressure: 250 bar

Maximum flow: 40 l/min

Section spacing: 35 mm

Weight: 2.76 kg

Typical application: power hydraulics

Connection:

Series connection (1) "N" : BSP 1/2'' internal thread

Supply from the pump (2) ”P” : BSP 1/2'' internal thread

Return to the tank (3) ”T”: BSP internal thread 1/2''

Section outlet (4): BSP internal thread 3/8''

Safety valve: (5)

THE SET INCLUDES: Durable Presko hydraulic distributor: 2 sections

Flow 40l

Maximum pressure 250bar

Safety valve setting 180bar

Power supply 1/2''

Return 1/2''

Exit to sections 3/8''

Two lines: 2 x 2m

durable protective armor

They are used to connect the joystick distributor with the ball system. Solenoid valve. The high-quality PRESKO solenoid valve is used in hydraulic systems as an additional section - usually the third one in a 2-section distributor.

It can be responsible for controlling a crocodile or a grabber.

The solid design of the solenoid valve guarantees long and trouble-free operation.

A solution common in TURACH.

TECHNICAL SPECIFICATIONS:

Maximum oil flow - 50 l/min

Threads (BSP) - 1/2'

Voltage - 12 V

Maximum pressure - 315 bar

Maximum operating temperature -20 +70 °C

Robust Joystick by PRESKOJoystick with one button, adapted to control ball-ended ropes

Durable construction made of high-quality quality materials

Enables precise control of devices such as a bucket, grapple or crocodile.

Perfect for TOURS, CYCLOPES, FORKLIFTS AND LOADERS

Used safety mechanism that blocks the movement of the joystick head

Cable opening - diameter 14mm

WHAT MAKES OUR PRODUCT DIFFERENT?

It is characterized by many positive properties, including:< p>

• high limit working pressure up to 250 bar,

• maximum flow of 40 l/min,

• optimal section spacing of 35 mm,

• low own weight of 2.76 kg.

The product allows for easy control of the oil flow in the system and can be combined into larger systems through pressure sleeves. It is used in many power hydraulics solutions.
