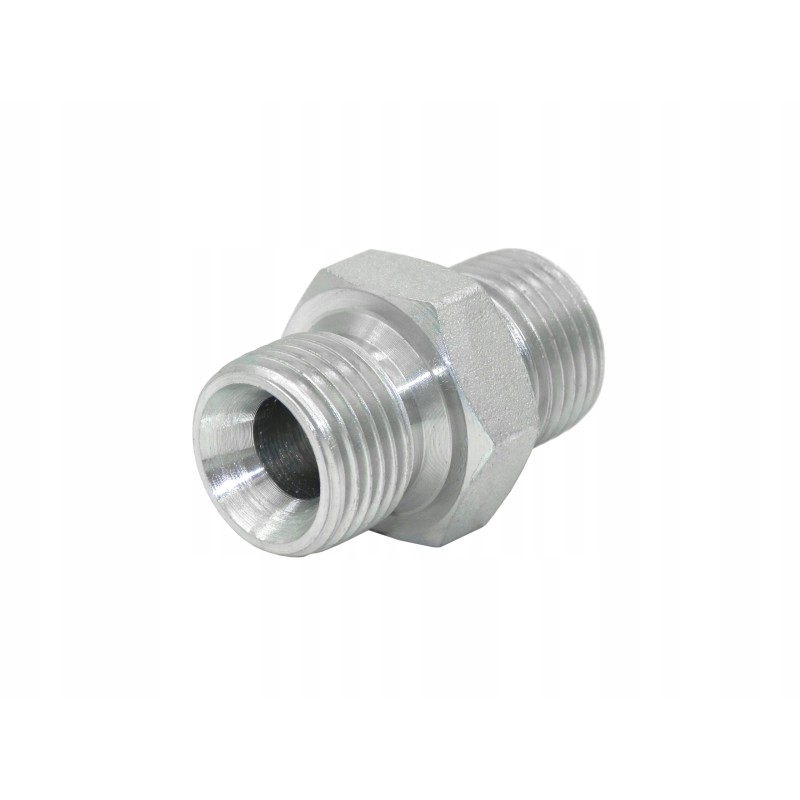

Hydraulic connector bsp 2 bsp 2 fitting

HYDRAULIC CONNECTOR BSP 2'' - BSP 2'' Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized light version connector with a conical clamping self-sealing when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connections that can be purchased at our other auctions.

Technical data:

Thread on both sides: external inch BSP 2''

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Type of liquid: hydraulic oil

Material:

weldable steel , galvanized, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate
