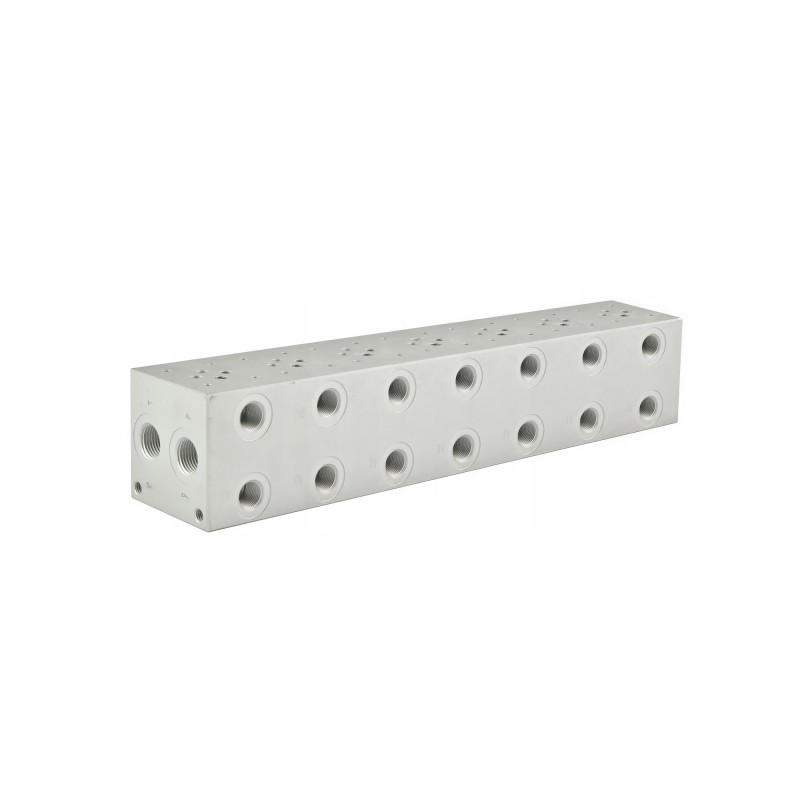

Valve block cetop plate 3 ng6 7 sec hydrolider

CONNECTION PLATE, 7-SECTION VALVE BLOCK, CETOP 3 NG6 DISTRIBUTOR Brand:

Original product of the Hydrolider brand, symbol: 1.10.68.9070

Application:

It is widely used in hydraulic systems in construction, agriculture and industry.

Connection plates or valve blocks are included in complete CETOP hydraulic distributors. They act as a base for screwing CETOP 3 NG6 type slide distributors.

Slide distributors for plate installation, are used to control the direction of oil flow, the result is a specific movement or stopping of the receiver, e.g. an actuator or a hydraulic motor.

The plate allows for the installation of seven spool valves from the CETOP 3 NG6 series.

Technical data:

The plate is made of aluminum alloy, has an overflow valve and a port for screwing in a pressure gauge.

Connections: P and T 1/2' thread

Receiver outlets 3/8' thread

Maximum flow: 50L/min

Pressure range:

Nominal pressure: 200bar

Maximum pressure: 240bar

Temperature range and oil type:

Permissible ambient temperature : -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Recommended hydraulic oil based on mineral oil, e.g. HL 32 or HL 46

Recommended oil filtration at the level of 10 - 15 µ

On the right, an example photo of a complete CETOP distributor:
