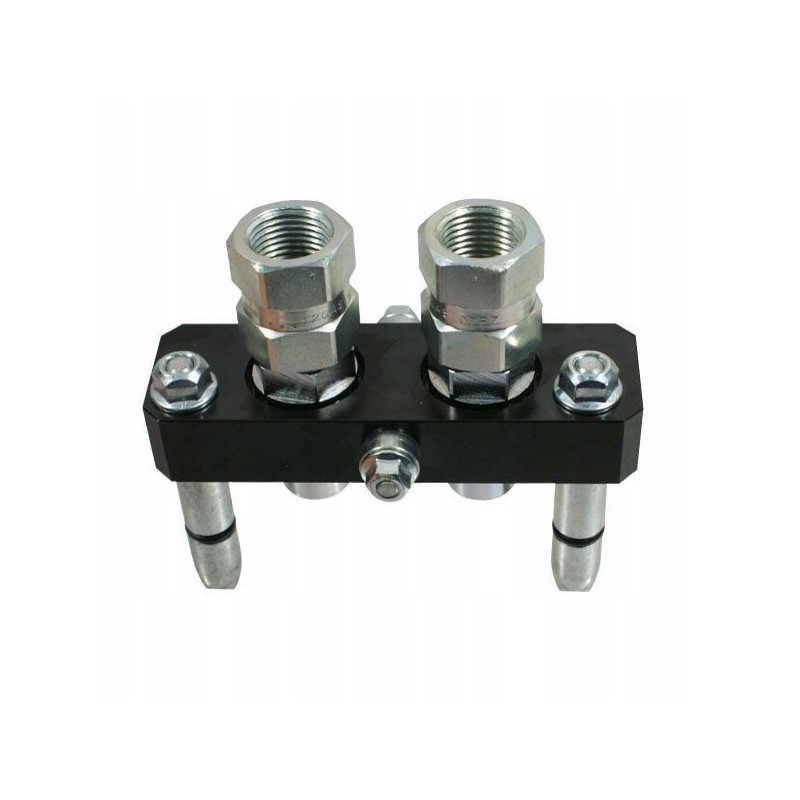

2pb06212gmc quick coupler moving part dn10 2x1 2

Quick coupling moving part DN10-2 x 1/2 BSP INDEX: 2PB06212GMC

Technical information: - The 2P series must be connected at residual pressure (max. 80 bar) - The 3P series can be connected to the moving part at full pressure - Replacing the connector inserts allows you to convert a 2P moving part to a 3P

Type: Moving part

Specifications: - Slim design - Simultaneous connection of several wires - Locking and unlocking with just one handle - Flat sealing - Easy cleaning

Benefits: - Space saving - No replacement of cables - Easier work - Minimum degree of leakage - Prevents contamination of the system

Properties: - Connection without air inclusions - Safe condition factor coupling 1:4

Valve type: Flat

Application: - For use with frequent tool changes - Front loaders - Telescopic loaders - Agricultural machinery - Construction machinery

Size: 3/8' inch

Connection: 1/2' BSP

Category: 2 connections DN 10

Max. temp: +100°C

Min. temp: -25°C

Thread [BSP]: G 1/2 inch

Housing material: black, anodized aluminum

Note: Each type of multi-clutch is specially marked.

Possibility of connection under pressure: Yes

Model: 2PB06

Max flow: 40l/min

Connection type: Lever< p>

Max. working pressure [bar]: 250

Pmax: 350BAR

Weight (g): 786g

Number of plugs: 2
