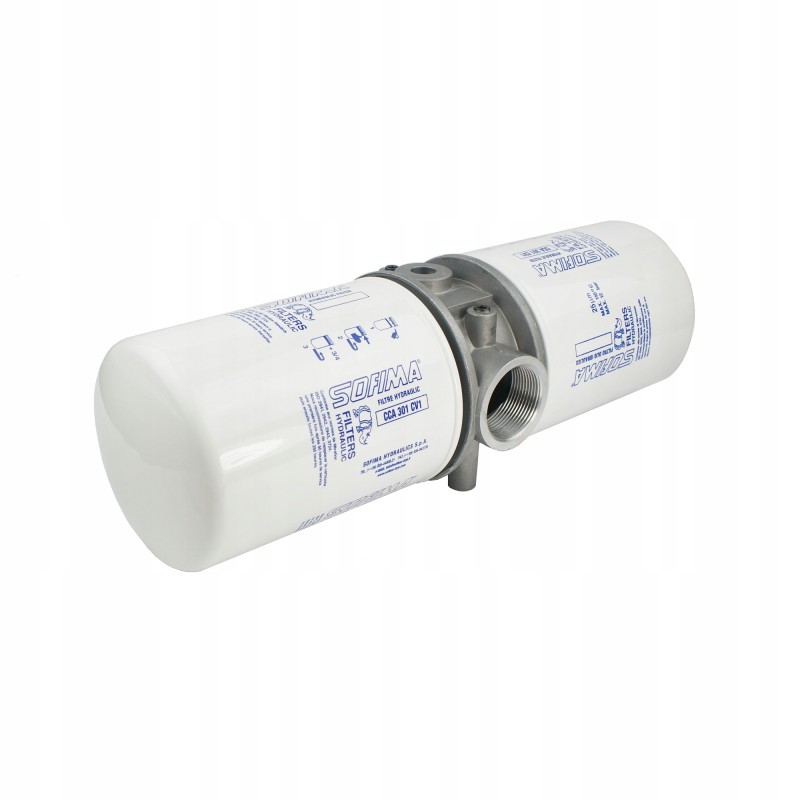

In-line suction filter amf 601 mn1ab606 sofima

LINEAR FILTER FOR INSTALLATION ON THE SUCTION MAXIMUM FLOW: 150L/minProduction:

Original product of the Sofima brand, symbol: 1.47.01.031.1

Application:

It has a wide range of applications in hydraulic systems in agriculture, construction and industry.

Original Italian SOFIMA filter installed in external hydraulic systems, on the return line. It has a very wide range of applications in hydraulics and protects delicate components of the set, such as the pump and distributor, against damage. It can be mounted directly to the tank.

General information:

The filter is equipped with a special so-called bypass valve, which ensures bypass of the oil stream in case of dirt and blockage of the filter mesh. The valve is switched on when the pressure 1.7 bar and protects the filter against tearing.

We recommend selecting filters with a relatively higher flow than required in a given hydraulic system. The reason for this is that the use of thick oil or quite low, negative temperatures can reduce the flow by up to 40%.

Technical data:

Type: AMF 601 MN 1 A B6 06 SOFIMA

Internal thread (on both sides): 1 1/2'

Filtration: 125 µ

Max. pressure: 12bar

Burst pressure: 25bar

Bypass valve pressure: 1.7bar

Flow: 150 L/min - oil with a density of 30 CST (equivalent to HL 30)

The filter insert is replaceable and can be purchased at our other auctions
