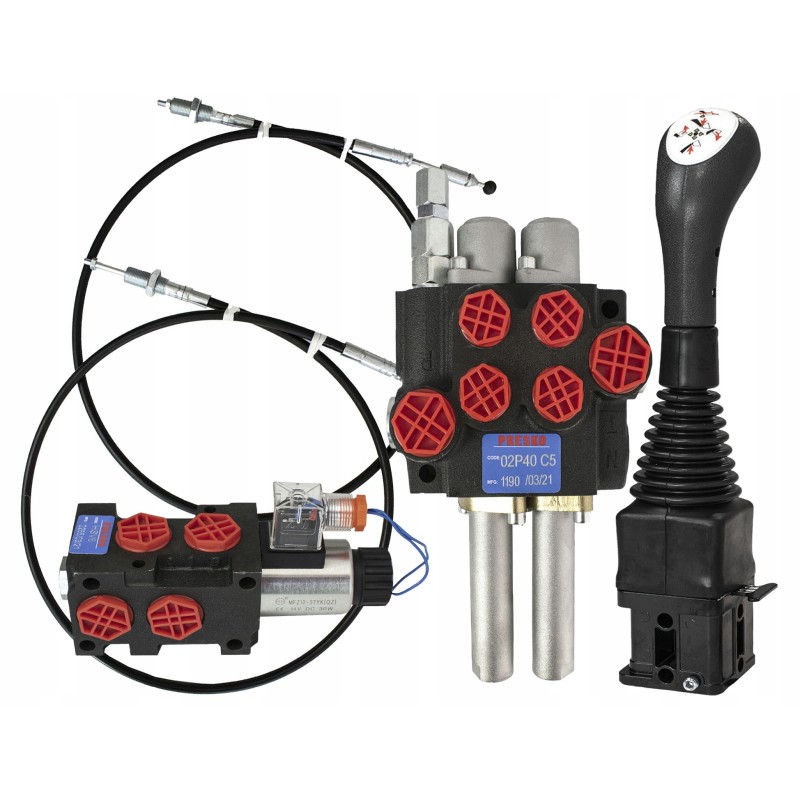

Set of 3 sec to turn joystick splitter cables

2-SECTION HYDRAULIC DIVIDER 40l WITH JOYSTICK, CABLES (2x1.5m) AND SOLENOID VALVE - SET Durable hydraulic distributor (40l) by PRESKO - set with cables and solenoid valve (12v, 50l).

The distributor is successfully used in agriculture, horticulture, construction and forestry.

It is used in many machines and vehicles with a hydraulic system. It allows you to connect a hydraulic system located outside the cabin with a joystick located in the cabin, making work comfortable and safe.

In a set with cables, a joystick and a solenoid valve used in hydraulic systems as an additional section - usually the third with a 2-section distributor.

Durable and proven design of the set, guarantees failure-free operation of the system for a long time.

Distributors very often used in TURACH and:

- Tractors

- HDS loaders

- Sweepers

- Excavators

- Cyclops

- Forklifts

- Sprayers

- Balers

- Agricultural machines and many others

Technical specification

Number of sections: 2< p>

Safety valve setting: 180 bar

Maximum pressure: 250 bar

Maximum flow: 40 l/min

Section spacing: 35 mm

Weight: 2.76 kg

Typical application: power hydraulics

Connection:

Power supply from the pump (P1, P2) : BSP 1/2'' internal thread

Return to the tank (T1, T2): 1/2'' BSP internal thread

Outlet to sections (A1, A2, B1, B2): BSP internal thread 3/8''

Series connection (N): BSP internal thread 1/2'

Safety valve: Z

W THE SET INCLUDES: - Durable Presko hydraulic distributor: 2 sections

Flow 40l

Maximum pressure 250bar

Safety valve setting 180bar

Power supply 1/2''

Return 1/2''

Exit to sections 3/8''

- Two lines: 2 x 1.5 m

durable protective armor

They are used to connect the joystick distributor with a ball system - Solenoid A high-quality PRESKO solenoid valve is used in hydraulic systems as an additional section - usually the third one in a 2-section distributor.< p>

It can be responsible for controlling a crocodile or a grabber.

The solid construction of the solenoid valve guarantees long and trouble-free operation.

A solution common in TURACH.

SPECIFICATION TECHNICAL:

- Maximum oil flow - 50 l/min

- Threads (BSP) - 1/2'

- Voltage - 12 V

- Maximum pressure - 315 bar

- Maximum operating temperature -20 +70 °C

- Solid Joystick by PRESKOJoystick with one button, adapted to control lines with balls ending< p>

Durable construction made of high-quality materials

Enables precise control of devices such as a spoon, grapple or crocodile.

Perfect for TURNS, CYCLOPES, CARTS FORKLIFT AND LOADER

A safety mechanism used to block the movement of the joystick head

Cable opening - diameter 14mm

WHAT MAKES OUR PRODUCT DIFFERENT?

Its characteristics has many positive properties, including:

• high operating pressure limit up to 250 bar,

• maximum flow of 40 l/min,

• optimal section spacing of 35 mm,

• low own weight of 2.76 kg.

The product allows for easy control of the oil flow in the system and can be combined into larger systems via pressure sleeves . It is used in many power hydraulics solutions.
