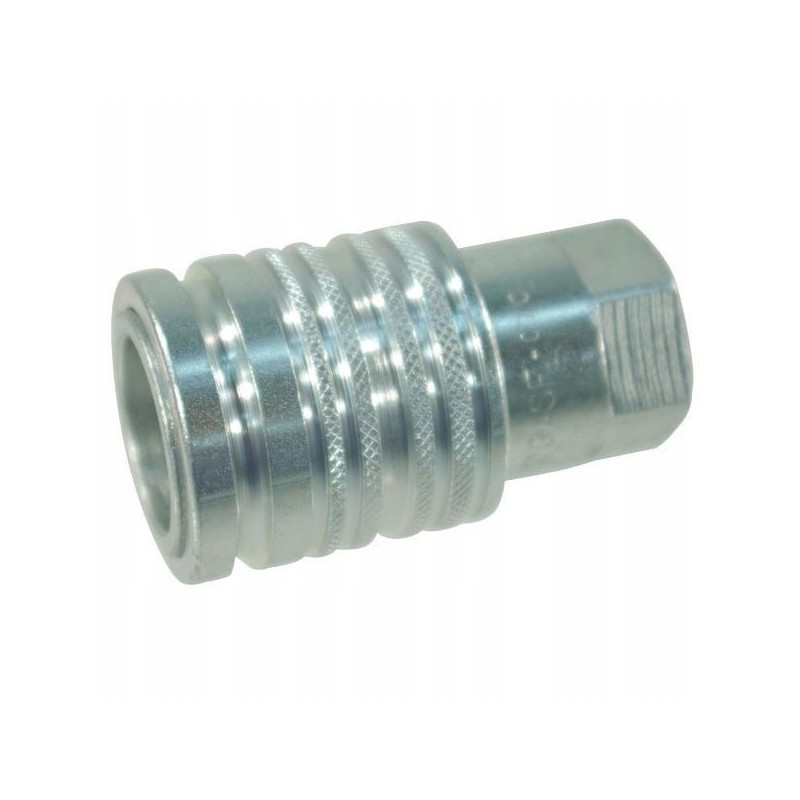

Skpf12d18 quick connector iso 12 5 internal thread m18x1 5

Quick connector ISO 12.5 internal thread. M18x1.5 - socket, HP101IMF18 INDEX: SKPF12D18

Material: Steel

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Machines agricultural - Municipal technology - Mineral oil-based fluids

Outer diameter: 38 mm

ISO standard: 7241-1-A

Connection diameter: 20.5 mm

Surface treatment: White passivated

Total length: 72 mm

Seal material: Nitrile rubber [ NBR]

Teflon (PTFE)

Working pressure: 250 BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Working temperature max: 100°C

Working temperature min: -30 ° C

Connection type : socket

Thread pitch of connector no. 2: 1.5 mm

Type of connector no. 2: Thread

Thread diameter of connector no. 2: M18

Size (code): BG 3

Thread type of connector no. 2: Metric

Type of connector no. 1: Quick connector

Connector No. 1 type - male/female: Female

Connector No. 1 thread diameter: 18mm
