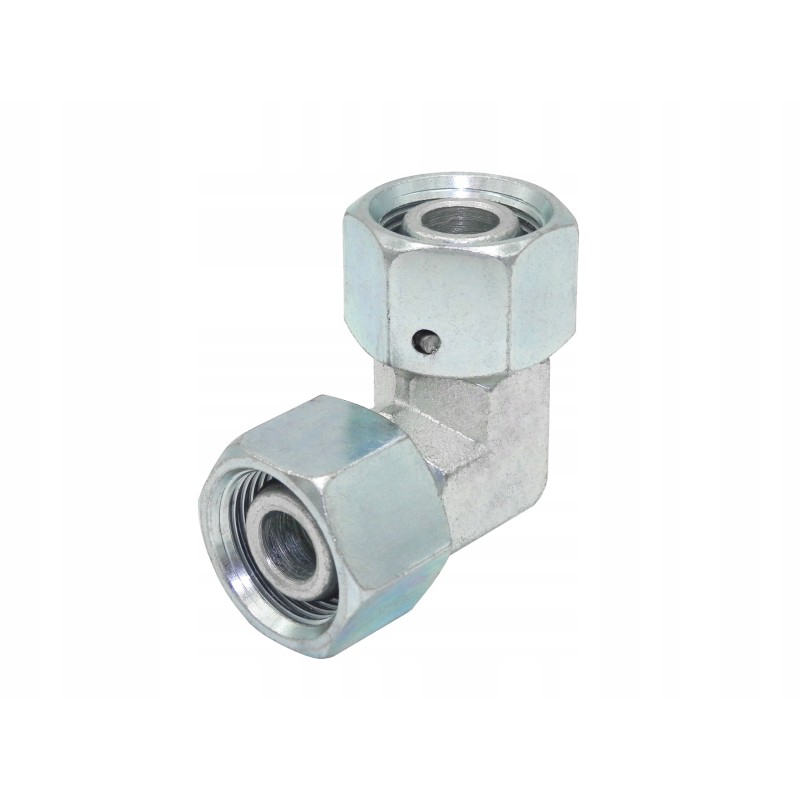

HYDRAULIC ELBOW CONNECTOR WITH TWO NUT M22x1.5 15LApplication:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
Elbow connector with a conical self- clamping seal when tightening. Designed to connect two hydraulic hoses or to connect with other connectors with the same cone system.
Technical data:
Thread on one side: external metric M22x1.5 15L - light standard< p>
Thread on the other side: internal metric M22x1.5 15L - light standard
Nominal pressure: 180bar
Maximum pressure: 230bar
Type liquid: hydraulic oil
Material:
weldable steel, galvanized, corrosion-resistant
We offer most types of hydraulic motors as well as a complete range of hydraulics force. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
We issue invoices
We invite you to cooperate
