Hydraulic hose line AK DN6 M14 D 300 400bar

Hydraulic hose with 90° elbow AK 6/2 M14x1.5, 2-braid (2SN), 400 Bar, L-300 mm Flexible hydraulic hoses next to rigid seamless pipes are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose made on the basis of the North-Fighter hydraulic hose meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with operating pressure not exceeding 400 Bar.

Hose specifications:

internal diameter: 6.2 mm, 1/4', dash: -04

outer diameter: 14.2 mm

inner layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

working pressure: 400 Bar

burst pressure: 1600 Bar

bending radius: 100 mm

temperature range: -40 °C +100°C

standard: EN 853 2SN

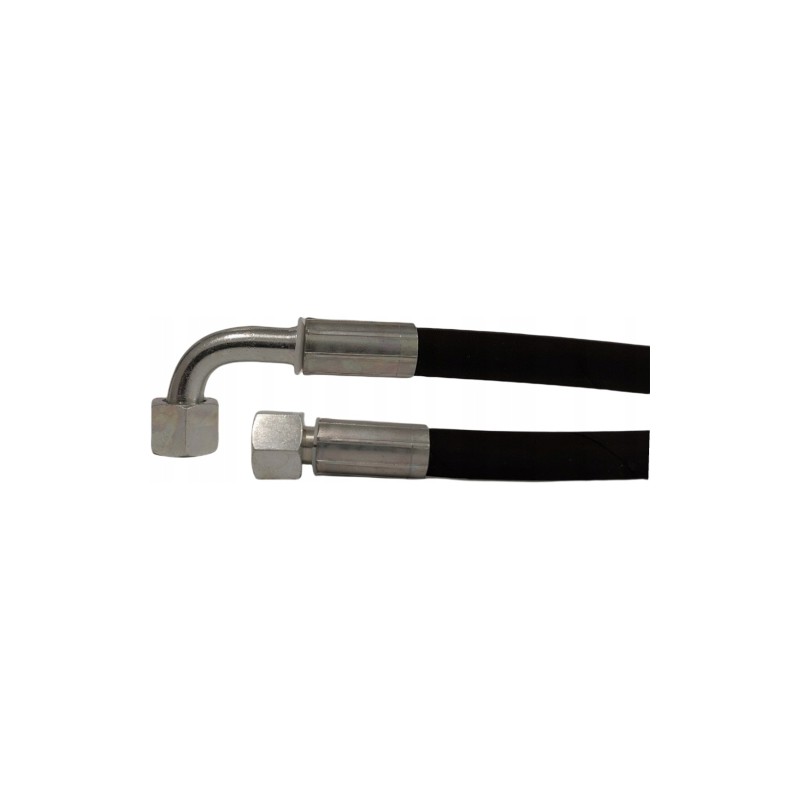

Cable with a DKOL straight metric end with internal thread M14x1.5 8L (nut) on one side and a DKOL elbow end on the other -90° with internal thread M14x1.5 8L (nut)

Cable specifications:

length L - 300 mm

end 1: DKOL M14x1.5 8L

end 2: DKOL-90° M14x1.5 8L

Cables available in other auctions in lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000 , 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 6000, 7000, 8000, 9000 and 10000 mm.

We are able to produce hose in every required size!

All our hydraulic hoses are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and long operation! To be able to determine the flow value of a given hose dimension, use the appropriate table ( see next).

The data is selected depending on the type of pipe:

pressure (supply) line

suction or return line

To determine the size of the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is applied to the flow value (left ruler), the other to the flow velocity value (right ruler), depending on the place of use of the hose.

The flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, you need to select the average value from a given range, rounding the cable dimension to the full size above the indication.

When designing and selecting cables for of a given system, you also need to pay attention to:

twisting angle of the ends, this applies to the following types of cables: elbow:elbow, eyelet:eyelet, elbow-eyelet

selection of the appropriate type of end depending on the location and working position of the hose

selection of the hose bending radius

avoiding twisting the hose during installation, which may cause its premature wear

proper protection of the hose against premature wear .

We offer many varieties of hydraulic fittings and hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here! Our cables are manufactured on the basis of the received order!

The return of ordered products is possible after prior acceptance by the seller. Otherwise, 50% of the value of the goods will be refunded!
