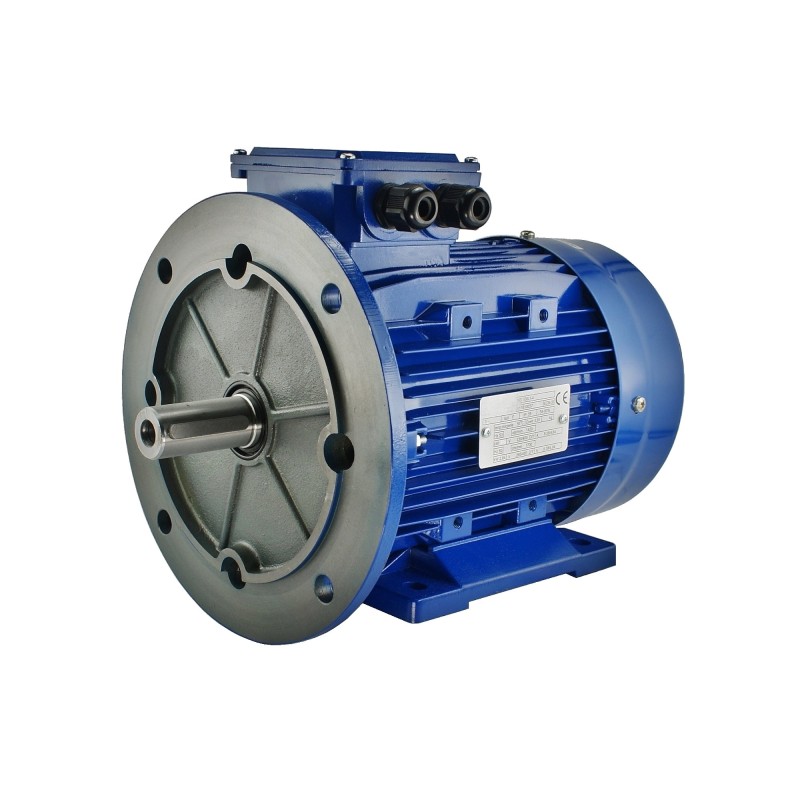

Engine 400v b35 2 2kw g100l 1420rpm hydrolider

3-PHASE ELECTRIC MOTOR 400V 2.2k FLANGE AND LEAP Production:

Original product of the Hydrolider brand, symbol: 1.42.10.022.1

Application:

It has a wide range of applications in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

General purpose engines, adapted for continuous operation in industry and agriculture. In hydraulic systems, used to drive pumps. In mechanical systems, to put other system components into rotation.

It is possible to install external cooling or a handbrake on the engines.

Technical data:

Type: AHC 100L 1-4

Power (kW): 2.2

Rated torque (Nm): 14.8

Current (A): 4.84

Voltage (V): 400

Rotation speed (rpm): 1420

Rotation direction: right or left

Diameter drive shaft (mm): 28

Key on the shaft: yes

Sealing: IP55 on both sides

Flange for mounting the bell connector: yes

Mounting claws: yes

Weight (kg): 21

Housing: aluminum

Winding: copper

Motors depending on deliveries are sent in blue or silver.

Example of application:

Using a 3-phase electric motor to drive a hydraulic pump. A bell connector and a jaw coupling were used to connect the pump with the engine (photo):

All elements or complete sets available at auctions.
