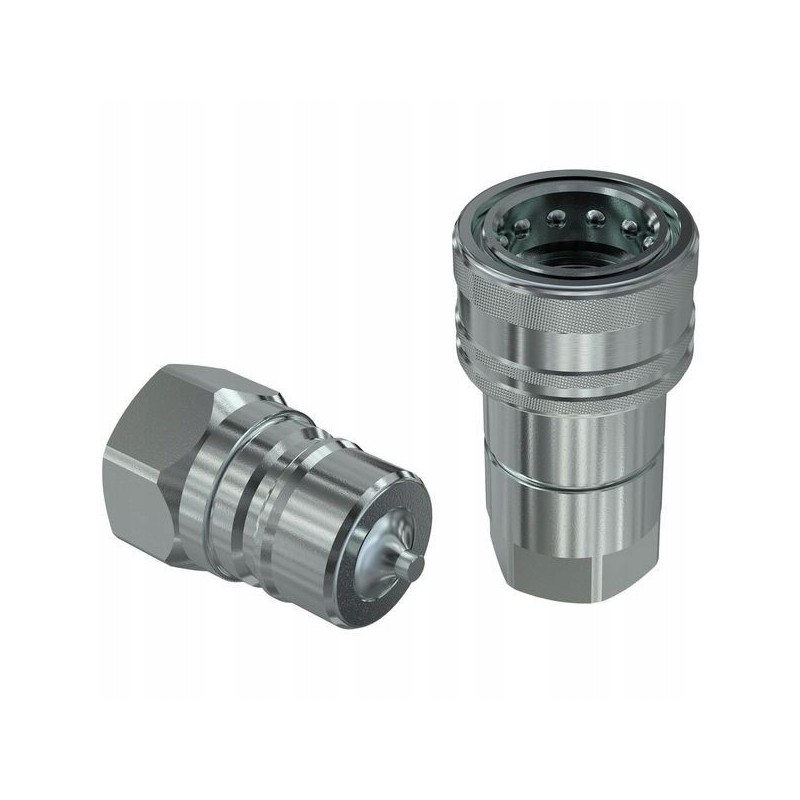

Anv14gasf quick connector 1 4 bsp ig socket

1/4 BSP IG quick connector, socket INDEX: ANV14GASF

Length: 48mm

Material: Carbon steel

Specifications: - Easy connection thanks to light springs in the connector sleeve - Large number of locking balls

Benefits: - Easy operation - Reduction of corrosion pitting

Features: - Axial reverse actuation of the locking sleeve (single acting) - Induction hardening in places exposed to rapid wear - No tear-off function

Valve type: Mushroom valve

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Viticulture - Mineral oil-based fluids

Size: 6 .3mm

Outside diameter: 25mm

ISO standard: 7241-1-A

Series: ANV

Connector thread diameter: 1/4inch

Connection diameter: 25mm

Surface treatment: White passivated

Connector thread type: BSP

Total length: 72mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 84.9g

Working pressure: 500BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 125 °C

Minimum operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve offset

Disconnection method: Sleeve offset

Connector type no. 2: Thread

Connection no. 2 thread diameter: 1/4 inch

Size (code): BG 1

Type of thread of connection no. 2: BSPP

Number of turns per inch of thread of connection no. 2: 19

Flow at 2 bar pressure: 8l/min

Type of connection no. 1: Quick connector

Type of connection no. 1 - male/ female: Female

Connector #1 key size: 19mm
