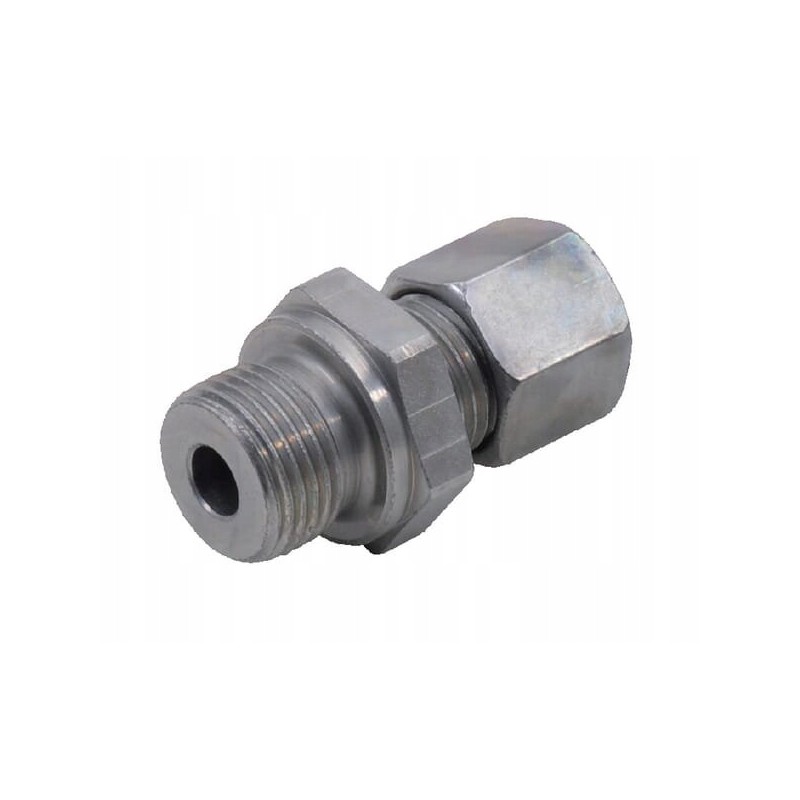

Straight screw-in connector gev6lm10 voss

Straight screw-in connector Parameters

Part number: GEV6LM10

Unit: piece

Manufacturer: Voss

EAN: 8719607070522

Shape: Straight - 2 sides of connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 6 mm< p>

Connector thread diameter: M12

Connector thread length [K]: 8 mm

Connector no. 1 thread pitch: 1.5 mm

Wrench size for connector [S1]: 14 mm

Connector No. 2 type: Thread

Connector No. 2 type - male/female: Male

Thread diameter Connector No. 2: M10

Connector No. 2 Thread Pitch: 1 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2 [S2] : 14 mm

Pipe diameter: 6 mm

ISO standard: 228

Max working pressure: 400 BAR

Series: L

Specifications

- 2S cutting ring

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

Technical information

- Available on request in a stainless steel version

Dimension from the axis of the connector to the end of the next connector [L2]

23 mm

Dimension from the axis of connector no. 2 to the end next connector [L1]

8.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
