3-section hydraulic distributor 40l 1d 1p 1p

3-section hydraulic distributor 40L 1x double-sided 2x floating DPP Badestnost MIZAR number: 65221

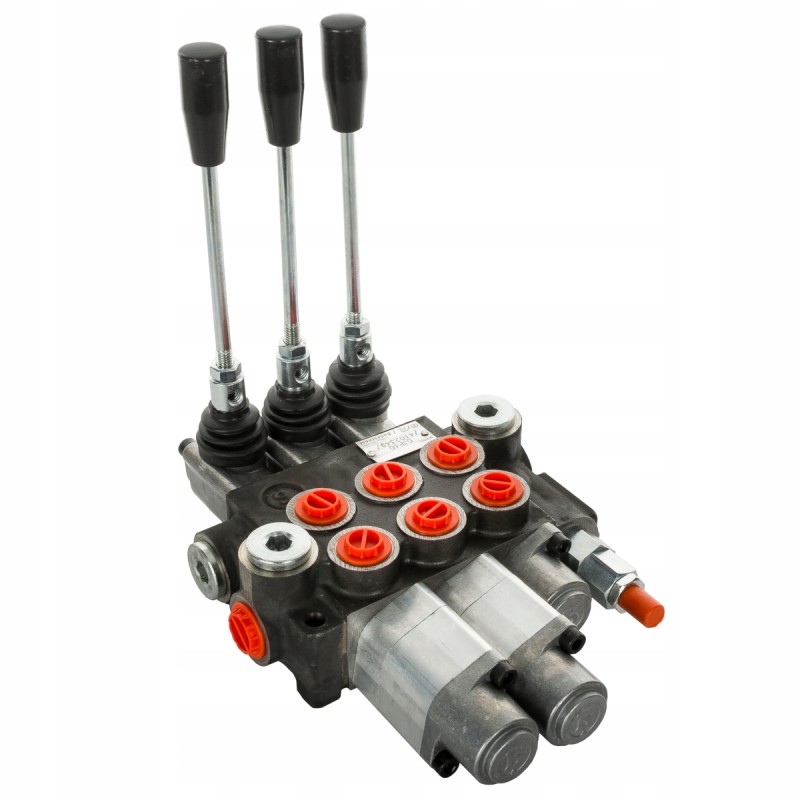

3-section hydraulic distributor 40L, 1x double-sided section (D), 2x floating section (P) Badestnost

Universal monoblock three-section distributor produced in Bulgaria.

It is used in many industries, from agriculture through municipal services and construction to industry. The versatility of the solutions used and attention to detail put this distributor at the forefront of this type of product range. Simplicity of construction guarantees reliability in operation, and a wide range of spare parts allows modifications according to current needs.

Number and type of sections:

1 section - regular double-sided (D) (unmodified) - enables control double-acting actuator

2nd section - floating (P) - modified slider and rear cap, enabling 4 lever positions

3rd section - floating (P) - modified slider and rear cap, enabling 4 lever positions

The undoubted advantage of the floating section is the ability to work with both double-acting cylinders (folding harrows, reversible plows, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifters, etc.).

The floating section has 4 positions:

0 - distributor in neutral position,

1 - actuator extension

2 - reversing actuator return

3 - lowering the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used, for example, in snow plows)

In the floating position - 3 - the section has a latch, which keeps the distributor lever in this position (so-called free flow)

Read the detailed description of the functionality of various types of sections:

https://sklep.mizar.com.pl/zastosowanie -individual-types-of-sections-of-universal-distributors-n-147.html

Control:

Working position 1 - the cylinder piston rod extends.

Position 2 working - cylinder piston rod c

The lever is on a spring (it returns to the neutral position by itself).

Neutral position 0, the cylinder piston rod is standing - the oil goes to the overflow. it hides.

Technical information:

Manufacturer: Badestnost

Control: lever mounted on the distributor

Operating temperature ranging from -40°C to +60°C < p>

Maximum working pressure:

P = 250 bar

T = 50 bar

A,B = 300 bar

Oil flow 40L/ min.

Connections: Section outputs (A and B) - 3/8' BSPSupply (P*) - 1/2' BSPReturn (T *) - 1/2' BSPPressure outlet (N*) -1/2' BSP

* - markings embossed on the manifold casing to identify the connections

The manifold is equipped with a non-return valve and an overflow valve that also serves as a safety valve.

Why Badestnost?

Badestnost is a Bulgarian company operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!

MIZAR number: 65221
