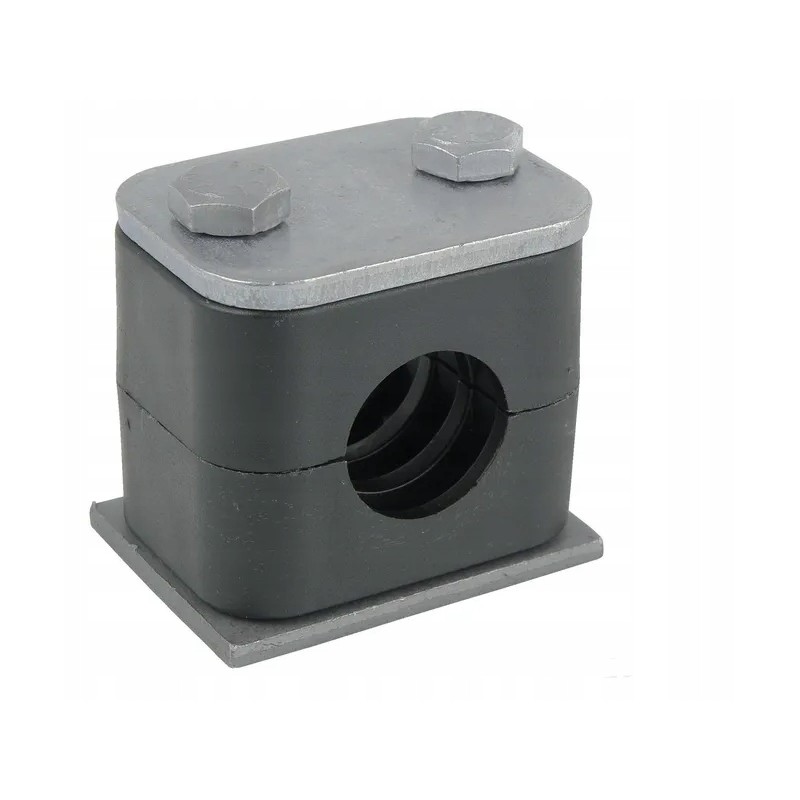

Rs320p001 single clamp set 20 mm
  • Rs320p001 single clamp set 20 mm

Rs320p001 single clamp set 20 mm

15013152099199
Stauff
£12.10
Quantity
5 Items

Description
RS320P001 Clamp set single 20 mm Specifications

Good resistance to UV radiation

Rounded edges

Application

Vehicle construction

Machine construction

Installation construction

Electrical industry

Properties

Internal surface with prestressed ribs

Benefits

Long service life

Elimination of damage or injury

Diameter

20 mm

Width

50 mm

Consists of

The clamp consists of the following elements:

2 halves

Cover plate

Base plate

Suitable screws

Height

36 mm

Group code

3

Material

Polypropylene

Mounting bracket width

50 mm

Mounting thread diameter

M6< p>

Spacing of mounting holes

33 mm

Screw length

40 mm

Number of screws

2

Operating temperature min.

-30 °C

Operating temperature max.

90 °C

Color

Black

DIN standard

3015/1

Product Details
Stauff
15013152099199
RS320P001
5 Items
New

Data sheet

Manufacturer
Stauff
Part Number
RS320P001
