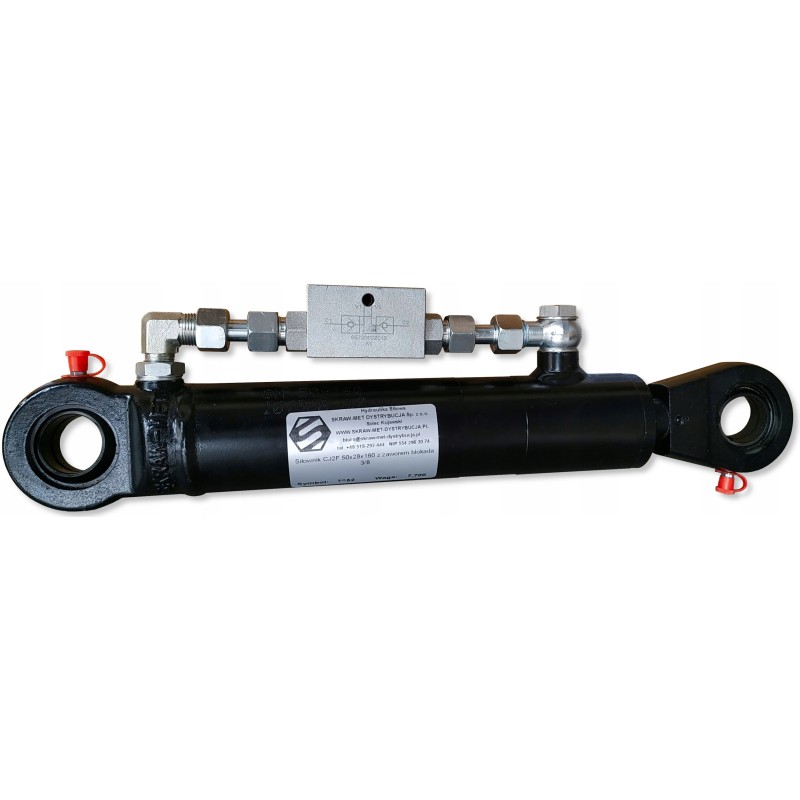

cj2f 50x28 160 actuator with lock valve 3 8

Polish Hydraulic Actuator 50x28x160 with a blocking and non-return valve used to block the actuator in both directions. SKRAW-MET CODE: [7652]The set includes: CJ2F 50x28x160 actuator

Connection set

12mm tube< p>

Blocking valve - return 'LOCK' VBPDE 3/8''

!!!The sets sent are prepared for self-assembly due to the risk of damage during transport by the transport company!!!The actuator Hydraulic Polish double-acting with a stroke of 160 mm[0059]

Manufacturer: Skraw-Met_____________________________________________________________________

It is worth knowing when choosing an actuator supplier. Photos and pictures only show the external appearance of the actuators. The most important elements that affect the quality and proper operation of the actuator for a long time are hidden inside (reinforced seals, stuffing box, piston rod and high-quality pipe). All our actuators ensure the highest quality of these elements. By choosing a product from our assortment, you are making a good and wise choice and the goods come from a Polish factory.

SKRAW-MET is a long-time leader in the production of actuators. Thanks to experience, he uses only reinforced seals of Polish origin, which ensures the highest quality on the market and reliability for years!

In our other auctions you will find reinforced seals as a repair kit for this actuator.

_____________________________________________________________________

Used in agricultural machines, TUR 1,2,3 loaders, aggregates and plows.

The hydraulic cylinder is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial and other machines.

Symbol: CJ2F 50x28x160 U35Technical specification: Length of the cylinder folded: 400 mm

Piston stroke: 160 mm

Total length of the cylinder after unfolding: 560mm

Piston rod diameter: 28 mm

Permissible max. pressure: 20MPa

Culinator mounted on: 2 x self-aligning bearings: 30 mm

Socket outlet: 2x M16x1.5

Permissible ambient temperature: -40 to +60?

Permissible oil temperature: -15 to +80?

Type of stuffing box: threaded, screwed into the pipe

Piston rod: chrome-plated

Hydraulic check valve 'ZAMEK' VBPDE 3/8'' Locking of the double-acting cylinder. SKRAW-MET CODE: [0326] Italian production, solidly made. The valve is used in double-acting cylinders, it is used to block the cylinder in both directions.

The valve releases the lock when controlling the hydraulic distributor.

The valve is used in rounds, cyclopes, forklifts , agricultural and industrial machines and other hydraulically controlled devices.

Connection: Connect V1 and V2 to the supply line (distributor) and C1 and C2 to the hydraulic cylinder.

Technical specifications: Maximum flow : 35L/min.,

Internal threads in the body: 3/8' connection port,

Permissible pressure: max. pressure. 350 Bar,

Permissible ambient temperature: -40'C to +60'C,

Permissible oil temperature: -15'C to +80'C,

Oil type: mineral oil-based hydraulic oil,

Material: galvanized steel.

!!!The sets sent are prepared for self-assembly due to the risk of damage during transport by the company transport!!!
