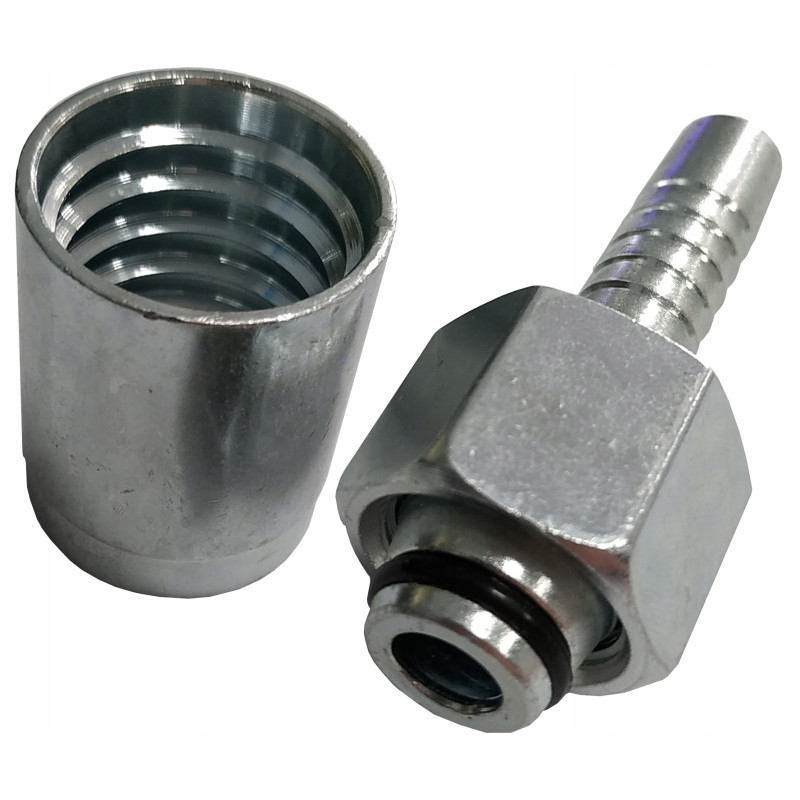

5x straight ferrule O-ring M18 with sleeve DN10 3 8

Set of 5x Straight Hydraulic Ferrule with a sealing ring M18 p/>5x Hose sleeve - [1536]

Used for crimping flexible hydraulic hoses to enable connection of hoses with other elements.

The basic element of hose production - is done by clamping the hose together with a clamping sleeve using a hydraulic press or crimping machine.

The sealing of the connectors is ensured by a 24° internal cone with an O-ring.

At every stage of production, precision and quality supported by detailed measurements.

State-of-the-art CAD/CAM and ERP/MRP software solutions enabling the production of details for the most demanding applications.

Clip symbol: DKOL P51 10 12LTechnical specification:Hose dimensions: DN10 - 3/8'

Dimension D for the tube: 12

Thread Nuts: M18x1.5

B (mm): 24

L (mm): 30< p>

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
