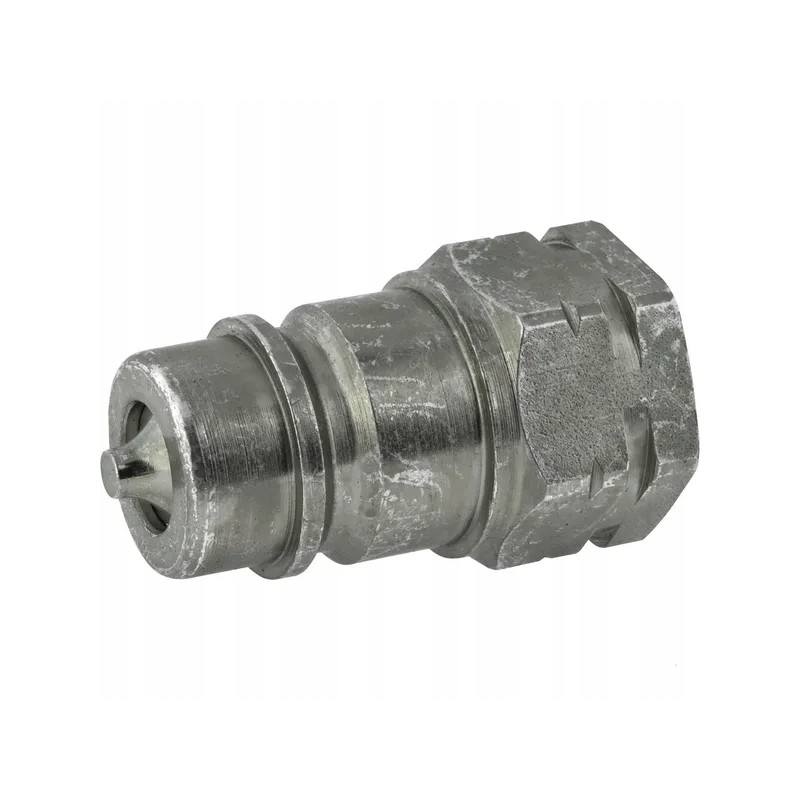

Quick connector plug skp m 1 2

B300HP102IMF22 Quick connector plug SKP-M 1/2' internal thread M22x1.5 Application

Universal use

Agricultural machinery

Municipal technology

Fluids based on mineral oil

Properties

Standard agricultural connector

Push to connecta

Shape Straight - 2 sides of the connection

Connector type no. 1 Quick connector

Connector type no. 1 - male/female Male

OD1Connection diameter 20.6 mm

Connector type no. 2 Thread

Connector no. 2 type - male/female Female

AConnection no. 2 thread diameter M22

Connector no. 2 thread pitch 1.50 mm

Thread type connections no. 2 Metric

Possibility to connect under pressure No

Outside diameter 38 mm

Material Steel

Surface treatment White passivated< p>

Operating pressure 250 BAR

Operating temperature max. 100 °C

Operating temperature min. -30 °C

Seal material Nitrile rubber [NBR]

Teflon (PTFE)

Connection type plug

Material Galvanized steel< p>

Thread Type Internal
