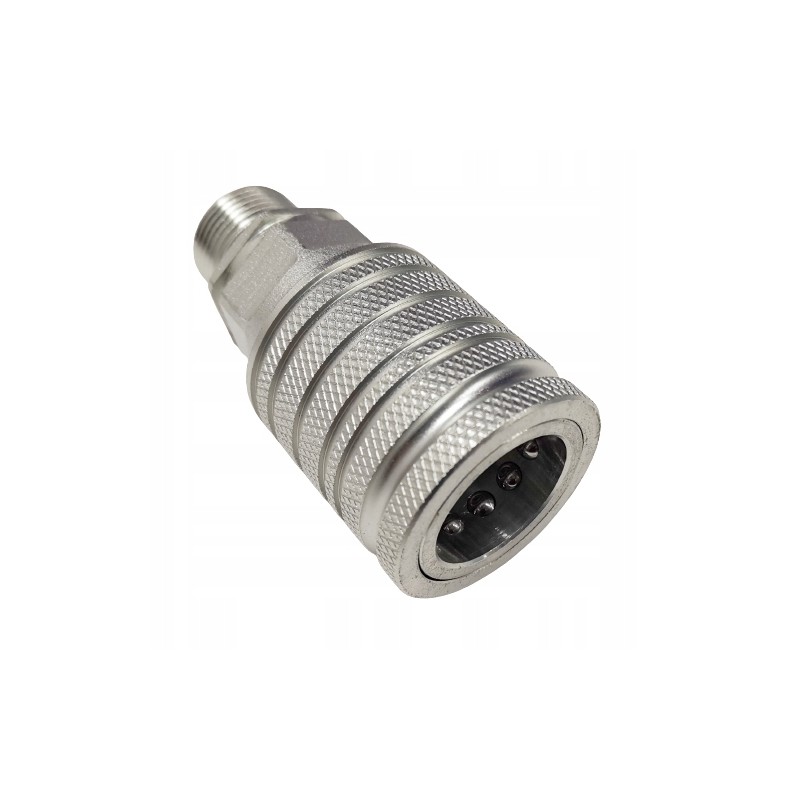

Quick connector, male thread M22x1 5 15l euro

HYDRAULIC QUICK CONNECTOR EURO SOCKET M22x1.5

Application: standard quick connector for hydraulic installations, recommended for agricultural machines, construction machines and industrial applications.

Outer diameter of the movable sleeve - 38.0 mm< p>

outer diameter of the plug - 20.5 mm

Technical data:

Standard: ISO 5675

Sleeve: double-acting

Closure: centrifugal balls

Material: steel

Finish: Zn-Fe (Cr III)

Threads: BSP – – metric

Standard seal: NBR

Operating temperature: -25°C to +100°C

Optional seal: FKM, EPDM or other

Operating pressure : 280 bar

maximum flow: 90 l/min

PPV3 PUSH-PULL EURO-CONNECTOR

Application: standard quick connector for hydraulic installations, recommended for agricultural machines , construction and industrial applications.

Outer diameter of the movable sleeve - 38.0 mm

outer diameter of the plug - 20.5 mm

Technical data:

Standard: ISO 5675

Sleeve: double acting

Closure: centrifugal balls

Material: steel

Finish: Zn -Fe (Cr III)

Threads: BSP – – metric

Standard seal: NBR

Operating temperature: -25°C to +100°C< p>

Optional seal: FKM, EPDM or others

Operating pressure: 280 bar

maximum flow: 90 l/min

PPV3 PUSH- PULL EURO-CONNECTOR

Cat. No.: EURO SOCKET M22x1.5 15L
