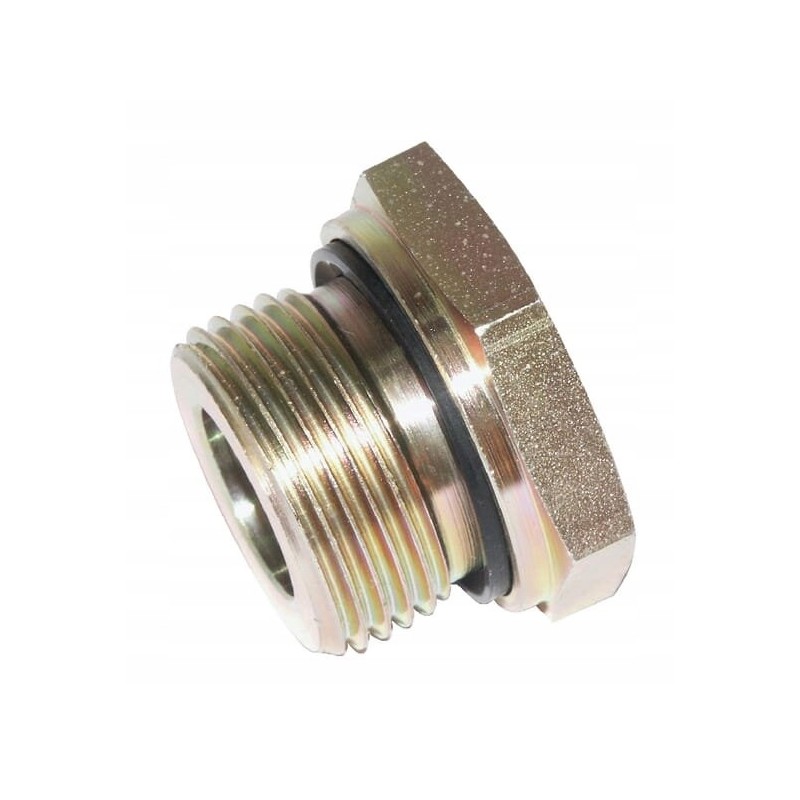

Reducing connector female internal thread 3 4x1 4 BSP from us
  • Reducing connector female internal thread 3 4x1 4 BSP from us
  • Reducing connector female internal thread 3 4x1 4 BSP from us

Reducing connector female internal thread 3 4x1 4 BSP from us

15012606735212
Voss
£16.43
Quantity
5 Items

Description
Reducing connector male/female thread 3/4'x1/4' BSP with gasket Parameters

Part number: REDR3414WD

Unit: Piece

Manufacturer: Voss

Product details: - Available with Viton seal upon request

Shape: Straight - 2 sides of connection

Connection type no. 1 - male/female: Male

Thread diameter connectors: 3/4 inch

Connector thread length: 12 mm

Connector thread type: BSP

Connector #1 key size: 31.9 mm

Connector #1 wrench size: 32.0 mm

Connector #2 male/female type: Female

Connection #2 thread diameter: 1/4 inch

Connection no. 2 thread type: BSP

Connection no. 2 wrench size: 32.0 mm

Inside diameter: 11.5 mm

Length: 26 mm

Total length: 26 mm

Material: Steel

Surface treatment: Galvanized

Max working pressure: 400 BAR

Seal type on the thread side: E

Seal material: Nitrile rubber [NBR]

Max tightening torque: 200 N m

Connection: BSP external thread / BSP internal thread

Product Details
Voss
15012606735212
REDR3414WD
5 Items
New

Data sheet

Manufacturer
Voss
Part Number
REDR3414WD
Original part number
REDR3414WD
Replacement part numbers
REDR3414WD
