Df0414nptm quick connector diagnost df plug 1 4

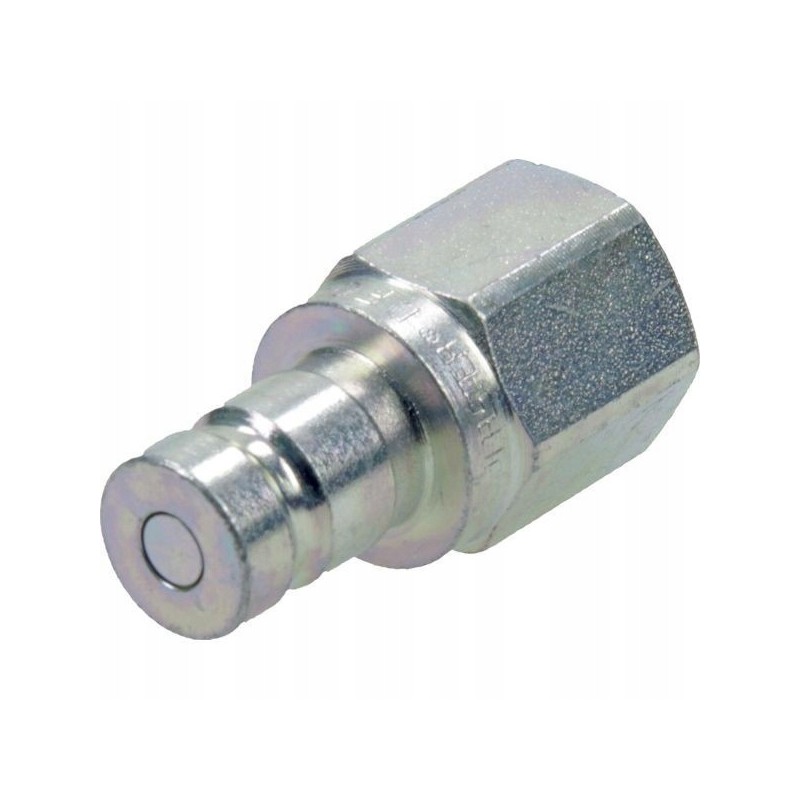

Diagnostic quick connector DF plug 1/4 internal thread 1/4 NPTF INDEX: DF0414NPTM

Material: Carbon steel

Specifications: - Flat seal Very small size

Benefits: - Minimal leakage rate - Connection without air inclusions

Features: - Intended as a diagnostic connector - Connection is made by inserting the plug (one-handed operation) - Disconnects by retracting the sleeve

Valve type: Flat

Shape: Straight - 2 sides connection

Application: - Point measurement systems - Mineral oil based fluids

Size: 6.3mm

Outside diameter: 12.7mm

ISO standard: 15171-1

Series: DF

Connector thread diameter: 1/4 inch

Connection: dB

Connection diameter: 12.6mm

Surface treatment: White passivated

Connector thread type: NPTF

Total length: 40mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE) )

Note: To disconnect, move the locking sleeve of the coupler back.

Weight: 48.3g

Working pressure: 420BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 125 °C

Minimum operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

ANSI standard: B1.20.3

Disconnection method: Sleeve offset

Connector type no. 2: Thread

Thread diameter connector no. 2: 1/4 inch

Connector no. 2 thread type: NPTF

Turns per inch of connector no. 2 thread: 18

Connector no. 1 type: Quick connector

Connector no. 1 type - male/female: Male

Connector no. 1 wrench size : 19mm

Connection diameter no. 1: 0.49 inch
