Pf62 tip dn06 1 8 bsp

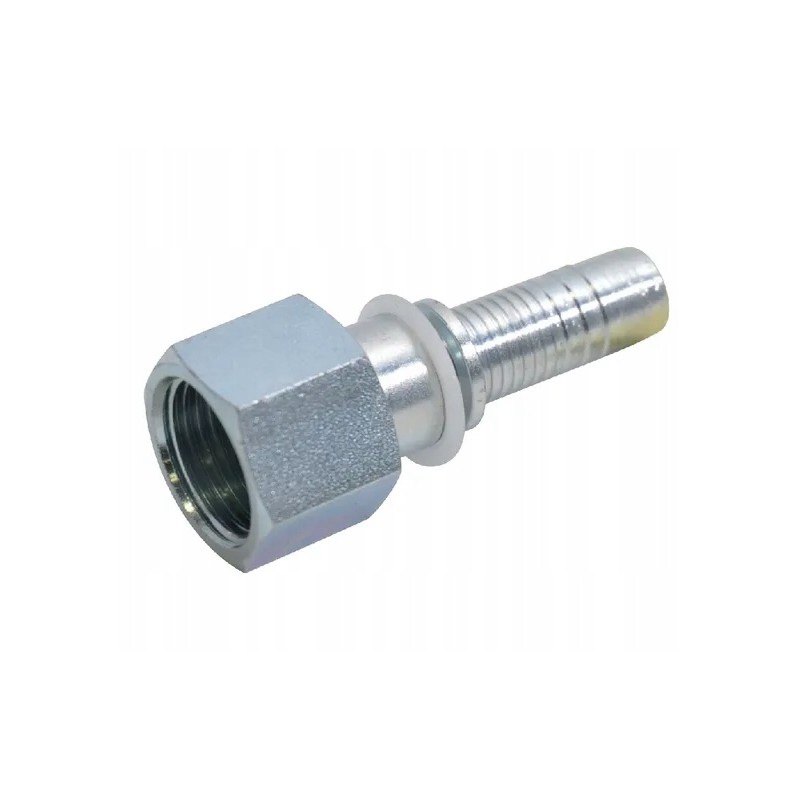

PF62 Fitting DN06-1/8 BSPProduct details

O-ring

Includes

Fittings

O-ring< p>

Cone angle

60 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOR

Connector thread diameter

1/8 inch

Connector thread type

BSP

Connector wrench size no. 1

14.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection No. 2 Diameter

1/4 inch

Connection No. 2 Diameter

6 mm

Dimension from the axis of the connector to the bottom of the next connector

14.2 mm

ISO standard

228

Height

19 mm

14 mm

Material

Steel

Surface treatment

Galvanized< p>

White passivated

Connection

BSP union nut with 60° external cone

Application

BSP screw connections

Type

DKOR
