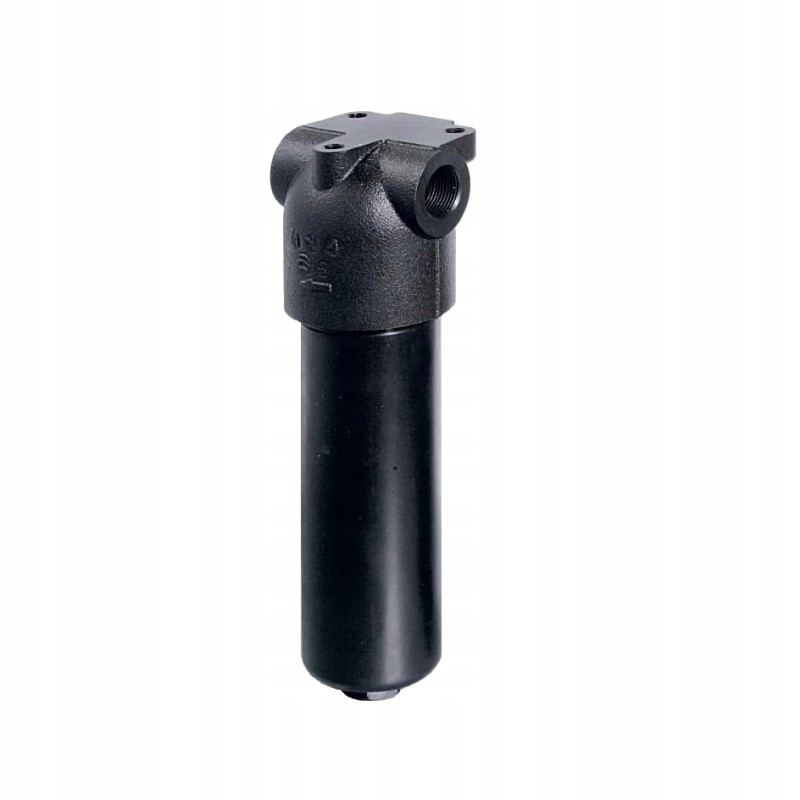

High pressure filter xtt 301 cv1 cb3 03x sofima

HIGH PRESSURE LINEAR FILTER in agriculture, construction and industry.

Filter installed in external hydraulic systems on the pressure line between the pump and the distributor or behind the distributor in individual sections. It has a very wide range of applications in hydraulics, it protects delicate elements of the set, such as the pump and the distributor, against damage

The filter insert is replaceable and can be purchased at our other auctions

Technical data:

The filter is equipped with a special valve, the so-called bypass, which ensures bypassing the oil flow in case of dirt and blockage of the filter mesh.

Type: XTT CV1 CB3 03XX

Internal thread (on both sides): 1/2'

Flow: 60 L/min - oil with a density of 30 CST (equivalent to HL 30)

Filtration: 25µ

Maximum pressure: 315bar

Pressure bursting: 1100bar
