Orbital hydraulic motor smh400 32mm 7 4kw

Name:

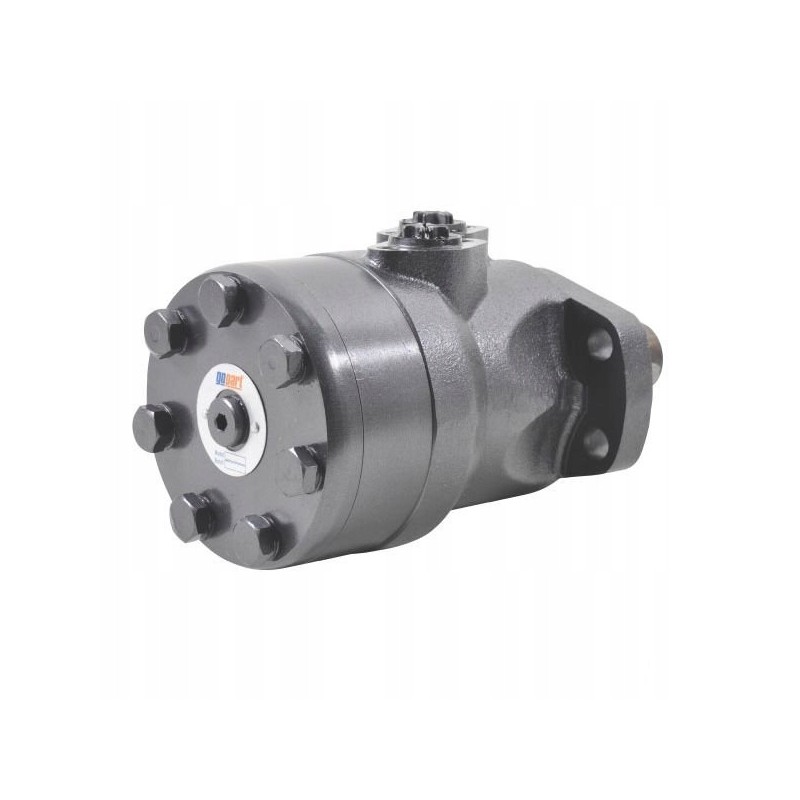

SMH400 32mm 7.4KW Orbital Hydraulic Motor

Description:

Part Number KSMH4004BDGP1

Specifications - Heavy Axial and Radial Load axle and high tightening torque - Low wear

Benefits - Good price-quality ratio - Long service life

Application - Can be used wherever high torque and low rotational speeds are required - Also suitable for continuous change of direction of rotation - Possibility of continuous use under high pressure

Features - Roller design - Wide shaft plain bearing - From the series of medium orbital motors - With leakage oil drain - Compact and very solid construction

Unit Piece

Connection 1/2' BSP, leakage oil 1/4' BSP

Flange types 4-hole flange (SAE A)

Shaft Ø (mm) 32

Note The motors are equipped with a leakage oil connection, so they can be easily combined with other motors or used in closed hydraulic systems.P1 = max. constant pressureP2 = intermittent operation max. . 10%/minP3 = max. top of the pressure graph

Discharge capacity (cm³/rev) 406.4

L (-mm) 195

L1 (-mm) 54

P1 (bar) 155

P2 (-bar) 190

P3 (-bar) 210

Nmax (rpm) 183

N min. (-Rpm) 10

Torque (da Nm) 85

Q max. (l/min) 75

Power (kW) 7.4

Manufacturer: replacement
