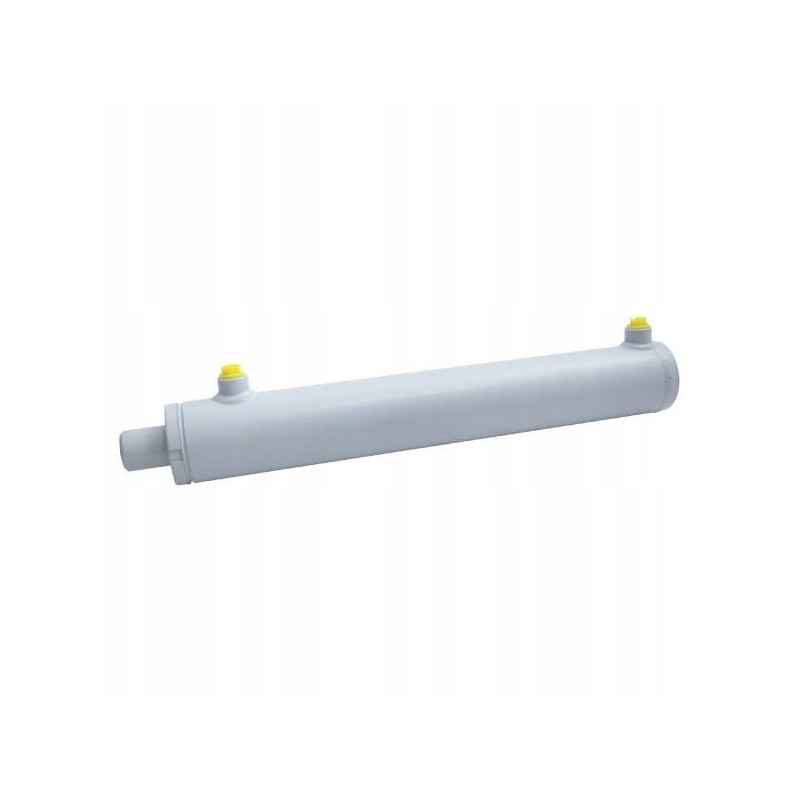

Double acting hydraulic cylinder actuator 45 80 60

Name:

Double acting hydraulic cylinder actuator 45/80/600mm

Description:

Part number KD4580600C1

Specifications - Fully assembled - Exceptional innovative design - Special securing ring on the piston

Benefits - For immediate use - Long service life - High level of operational safety

Properties - All types of mounting possible - Primed - Maximum radial load: 10 % axial force - Maximum working pressure depends on maximum buckling load - Maximum buckling load can be checked in the cylinder software

Technical information - Interchangeable with other brands - Medium: mineral oil, HLP ISO VG 32 to ISO VG 46- Medium purity: ISO 4406 22/20/17 or NAS 9

Unit Piece

Material - Cylinder tube: St52,H10- Piston rod: 20MnV6/C45, hard chrome plated Ra 0.20- Head nut: cast iron - Welding pipe connector: steel

Construction Bolted and welded, head nut and guide made of one piece

Max. working pressure (bar) 250

Rated pressure (bar) 200

Temperature range (°C) -25 +85

Piston speed (max.) (m/sec) 0, 1

Rod Ø (mm) 45

Hole (mm) 80

Stroke A (mm) 600

B (mm) 791

C (BSP) 1/2'

E (mm) 90

F (mm) 50

H (mm ) 68

Weight(kg) (kg) 24.4

Manufacturer: replacement
