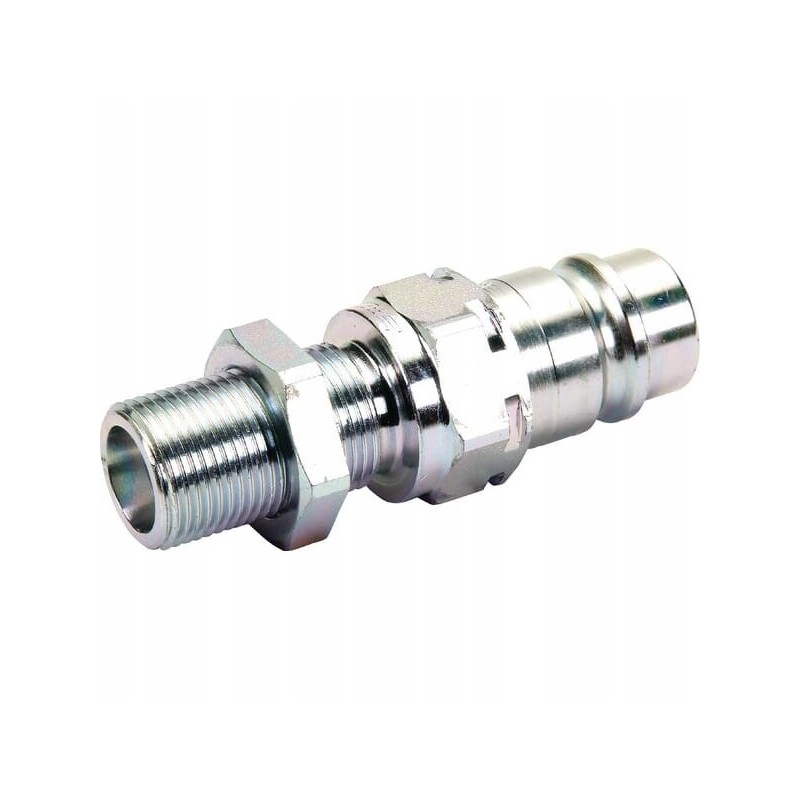

Cnv0862015m quick connector cnv plug 1 2 m20x1 5

Quick connector plug CNV 1/2 bulkhead thread M20x1.5 12S INDEX: CNV0862015M

Material: Carbon steel

Technical information: - Connection is made by pressing the plug (one-handed operation)

Features: - Induction hardening in places exposed to rapid wear - Fits CPV Faster sockets

Valve type: Mushroom head

Shape: Straight - 2 sides of the connection

Application: - Universal use - Agricultural machinery - Mineral oil based fluids

Size: 12.5 mm

Outer diameter: 30 mm

ISO standard: 7241-A

8434-1-S

Series: CNV

Connection diameter: 20.5 mm

Surface treatment: White passivated

Connector thread type: Metric

Total length: 81mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 166.6g

Working pressure: 250BAR

Connector type no. 2 - male /female: Male

Possibility of connecting under pressure: Yes

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Connection diameter no. 2: 12mm

Connector 2 thread pitch: 1.5 mm

Disconnect method: Pull to disconnect

Connector 2 type: Thread

Plug end diameter: 20.5 mm

Connector 2 thread diameter: M20

Connector 2 thread type: Metric

Flow at 2 bar: 75 l/min

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connector no. 1 thread diameter: 20 mm

Connector no. 1 thread pitch: 1.5 mm

Wrench size connector no. 1: 27

27mm

connector no. 1 thread type - code: 06

connection diameter no. 1: 0.81inch
