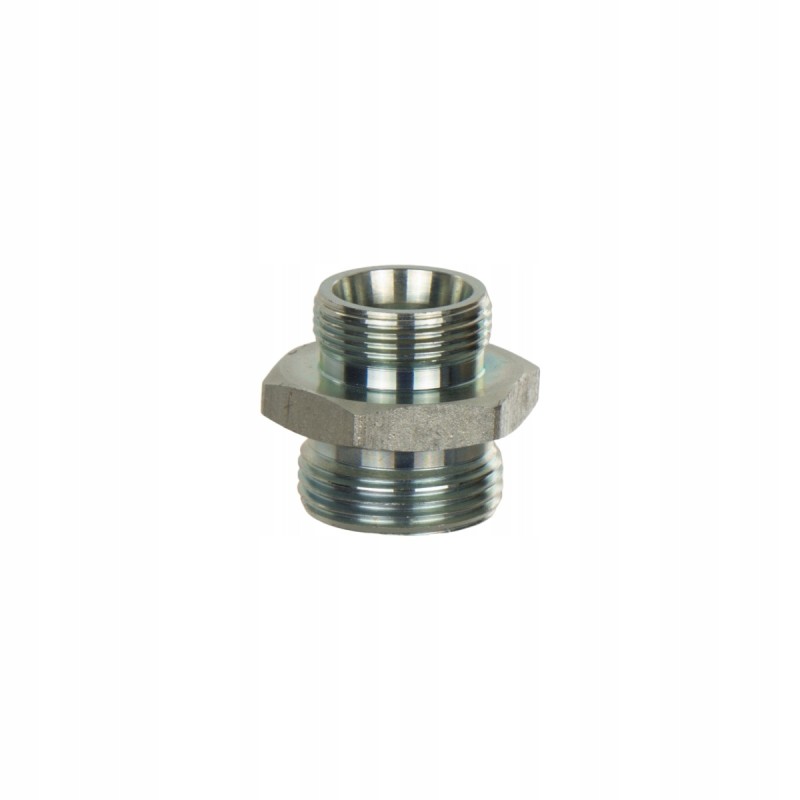

Nipple, straight reducing connector m30x2 m26x1 5

Nipple, straight reducing connector M30x2 / M26x1.5 MIZAR number: 65842

Nipple, straight reducing connector M30x2 / M26x1.5 Reducing connectors are elements of hydraulic installations that reduce the size of a larger pipe at the entrance to a smaller diameter at the outlet. This usually requires adapting the thread from a smaller to a larger one or vice versa. They are also used for elements such as elbows and other parts of plumbing installations. Not always only for cables.

Technical information:

Shape: straight - 2 sides of the connection

Connection type no. 1: thread

Connection diameter: 22 mm

Connector No. 1 thread diameter: M30

Connector No. 1 thread pitch: 2.00 mm

Connector thread type: metric

Wrench size for connector no. 1: 32.0 mm

Connect no. 2 type: thread

Connection no. 2 diameter: 18 mm

Connection no. thread diameter 2: M26

Thread pitch of connector no. 2: 1.50 mm

Thread type of connector no. 2: metric

Distance between connectors: 14 mm

Total length: 33 mm

MIZAR number: 65842
