3-section distributor, 40l, 2x floating section

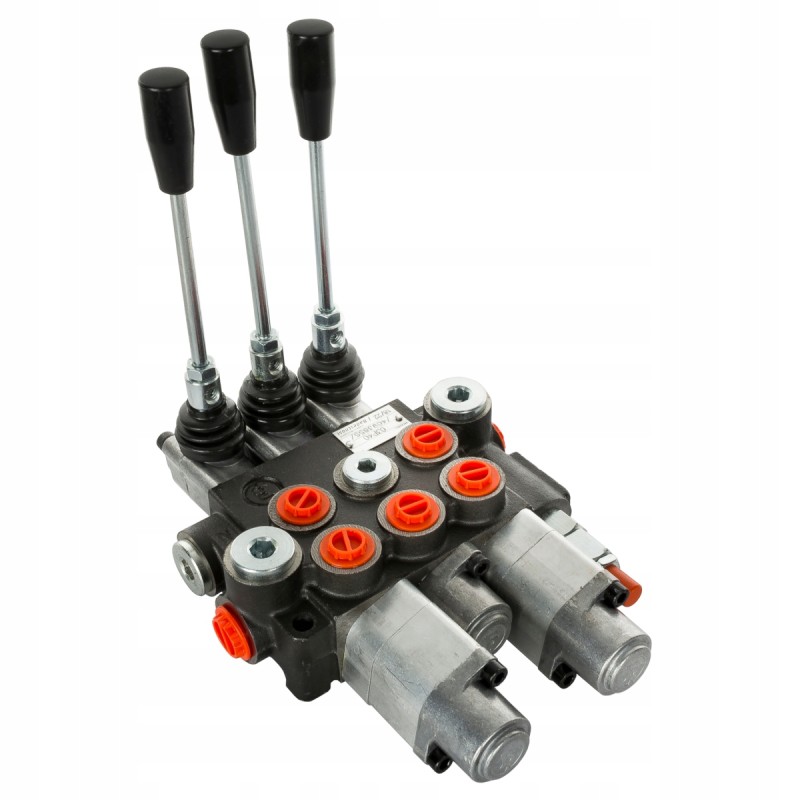

3-section hydraulic distributor 40L 2x floating side 1x one-sided side PJP Badestnost MIZAR number: 60687

3-section hydraulic distributor 40L 2x floating (P), 1x one-sided (J) Badestnost

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

A wide range of spare parts for the manifold and their availability enable trouble-free service and, if necessary, further modifications or expansion of the system.

Number and type of sections in order from the valve:

1 - floating section (P)

2 - single-sided section (J) - allows you to control a single-acting actuator

3 - floating section (P)

The undoubted advantage of the floating section is the possibility cooperation with both double-acting cylinders (folding harrows, reversible plows, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifts, etc.).

The floating section has 4 positions:

0 - distributor in neutral position,

1 - actuator advance

2 - return of the double-sided actuator

3 - lowering of the single-sided actuator (in the case of a double-sided actuator - this position allows its 'floating' which is used e.g. in snow plows)

In the floating position - 3 - the section has a latch that holds the distributor lever in this position (the so-called free flow)

Read the detailed description of the functionality of different types of sections:

https://sklep.mizar.com.pl/zastosowanie-poszczegolne-typow-sekcji-rozdzielaczy-uniwersanych -n-147.html

Control:

Three-position lever (does not apply to the floating section) on a spring (it returns to the neutral position by itself).

First position neutral (lever set vertically) the cylinder piston rod is standing - the oil goes to the overflow.

Second working position (lever set diagonally forward) the cylinder piston rod extends.

Third working position (lever set at an angle to the rear) the cylinder piston rod retracts.

Technical information:

Manufacturer: Badestnost

Control: lever mounted on the distributor

Ambient temperature range: -40C...+60C

Oil temperature range: -15C...+80C

Capacity: 40L/ min

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

Overflow valve factory set to 175Bar

Connections:

Section outputs (A and B) - 3/8' BSP

Power supply (P*) - 1/2' BSP

Return (T*) - 1/2' BSP

Pressure outlet (N*) -1/2' BSP

* - markings embossed on the distributor housing to identify the connections< p>

The distributor is equipped with a non-return valve and an overflow valve, which also serves as a safety valve.

Why Badestnost?

Badestnost is a Bulgarian company operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!

MIZAR number: 60687
