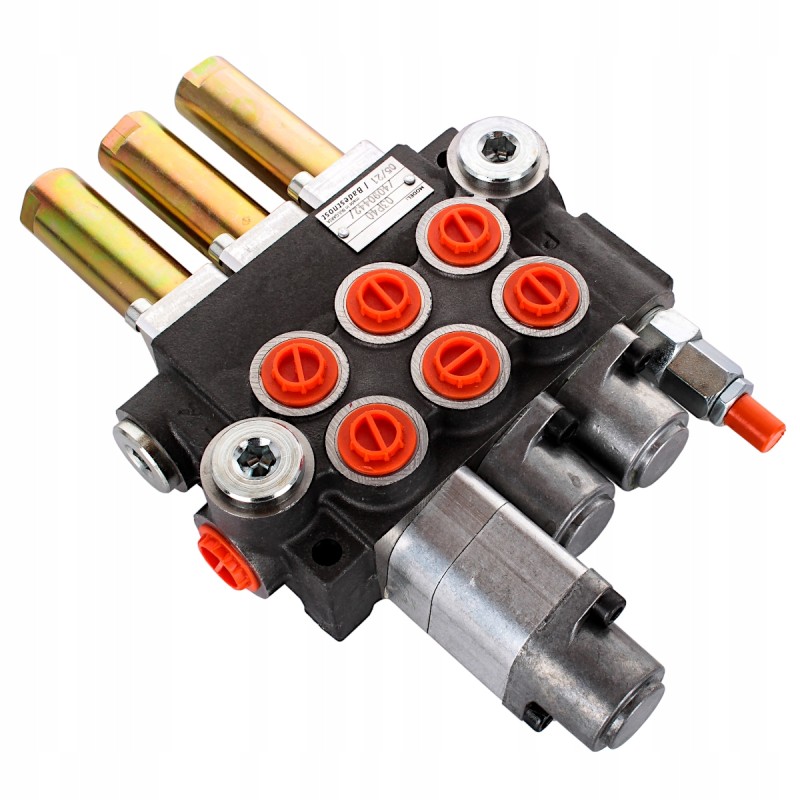

Hydraulic distributor 40l 3 sec 1p 2d for cables

3-section hydraulic distributor 40L for cables, double-sided section with a latch floating section DZP Badestnost MIZAR number: 66016

3-section hydraulic distributor for cables, 1x double-sided section (D), 1x section with a latch (Z) + 1 floating section (P) 40L Badestnost

High-quality monoblock three-section hydraulic distributor made in Bulgaria.

It can be used in many different machines and devices that use drives. hydraulic. Used, among others, for expanding or modifying hydraulic systems in Fiat, Zetor, Case, Ford tractors as well as in various agricultural machines, municipal construction machines, etc. Perfect for operating a snow plow.

Number and type of sections in order from the valve:

1st section - regular double-sided (D) (unmodified) - allows you to control double-acting cylinders

2nd section - regular with a latch (Z) in any position - allows you to control hydraulic motors and double-acting cylinders

3 section - floating (P) - modified slider and rear cap, allowing 4 lever positions.

The undoubted advantage of the floating section is the possibility of cooperation with double-acting cylinders (folding harrows, plows rotary, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifters, etc.).

The floating section has 4 positions:

0 - distributor in neutral position,

1 - extension of the actuator

2 - return of the double-sided actuator

3 - lowering of the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used, for example, in snow plows )

In the floating position - 3 - the section has a latch that holds the distributor lever in this position (the so-called free flow)

ATTENTION! If a distributor with a latching lever is used to control the actuator, remember that the lever does not automatically snap back after the cycle is completed. The overflow valve will then operate and the pump will be loaded until the lever is manually moved to the neutral position.

Technical information:

Manufacturer: Badestnost

Control: joystick/ levers on cables (Bowden cables)

Operating temperature range: from -40°C to +60°C

Oil flow: 40L/ min.

Pressure range :

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

Overflow valve set factory set to approx. 175Bar

It is possible to adjust the valve yourself, one full turn changes the pressure by approx. 30 bar.

Connections:

Outputs from section (A and B) - 3/8' BSP

Supply (P*) - 1/2' BSP

Return (T*) - 1/2' BSP

Pressure outlet (N*) -1/2' BSP

* - markings embossed on the manifold housing to identify the connections

The manifold is equipped with a non-return valve and an overflow valve, which also serves as safety valve function.

Why Badestnost?

Badestnost is a Bulgarian company operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!

MIZAR number: 66016
