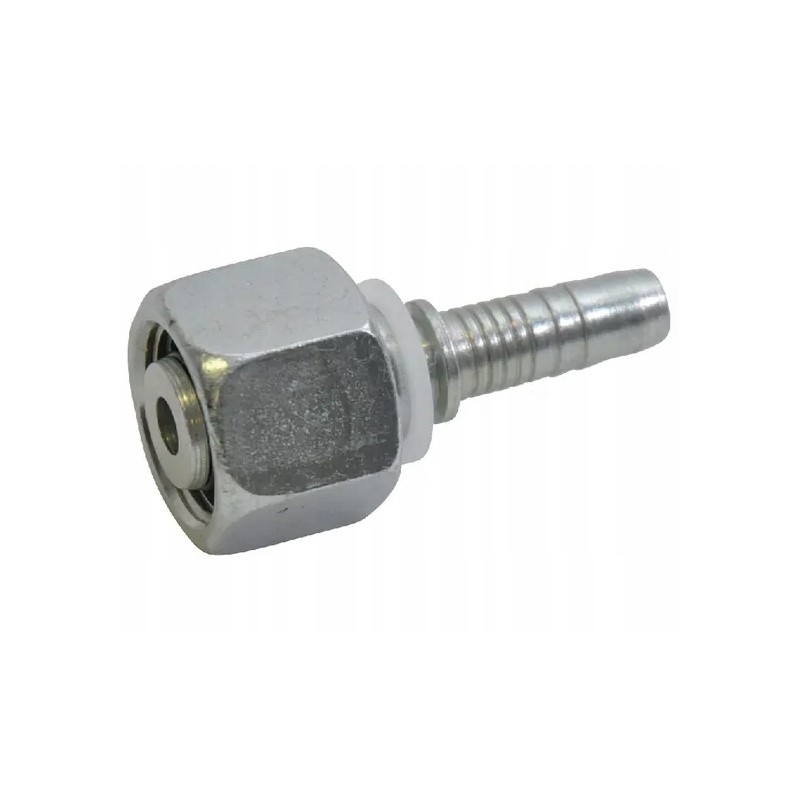

Pgso820 tip dn08 m20x1 5 12s

PGSO820 End DN08-M20x1.5-12SEAN

8716106787135

Product details

Cone, cone seal with O-ring

Connection for S series cutting ring

Includes

Tips

O-ring

Cone angle

24 °

Shape

Straight - 2 sides connection

Connector type no. 1

Swivel nut

Connector type no. 1 - male/female

Female

Type of connector no. 1 - code

DKOS

Length of connector no. 1

27.6 mm

Thread diameter of connector no. 1

M20

Thread pitch of connector no. 1

1.50 mm

Connector Thread Type

Metric

Connector #1 Wrench Size

24.0 mm

Connector #2 Type< p>

Hose connector

Connection type no. 2 - male/female

Male

Connection no. 2 diameter

5/16 inch

Connection diameter no. 2

8 mm

Material

Steel

Surface treatment< p>

Galvanized

White passivated

Series

12S

Connection

xx< p>

Type

DKOS
