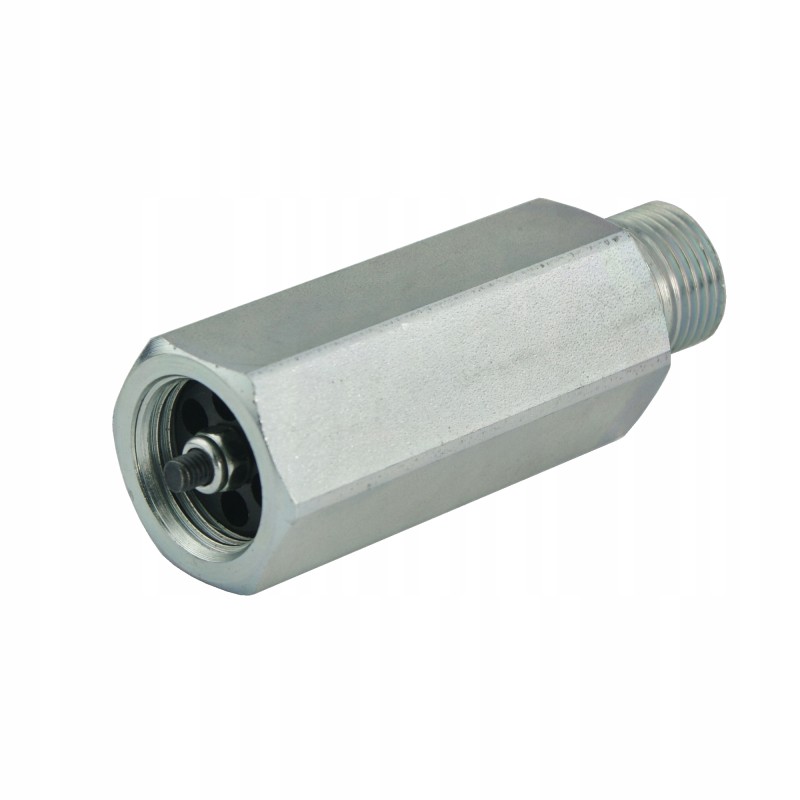

Safety valve for trailer vuba ab 3 8 set

COMPLETE HYDRAULIC VALVE VUBATYP AB 3/8' CARTRIDGE + BODY Production:

Original product of the Hydrolider brand, symbol: 1.35.45.011

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Valve mainly is mounted to various types of hydraulic cylinders, e.g. telescopic ones in loading trailers. It protects hydraulic cylinders that are exposed to high pressure forces. It closes the oil flow in the event of a pipe rupture, protecting against loss of oil in the cylinder and in trailers against sudden lowering of the unloading box.

Principle of operation:

Immediately after a pipe burst, the momentum of the oil in the actuator causes the valve to block and stop the oil leak. . The actuator remains in the position it was in when the cable broke. The valve thus gives time to replace the damaged pipe and return to operation without major financial and environmental losses and damage.

Technical data:

On the one hand, internal thread in the body [BSP]: 3/8'' On the other hand external thread on the body [BSP]: 3/8'' Material: galvanized steel Maximum pressure: 350 bar Weight: 0.12 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C Permissible oil temperature : -15 C to +80 C Oil type: Mineral oil-based hydraulic oil

Hydraulic diagram of the VUBA valve (photo):
