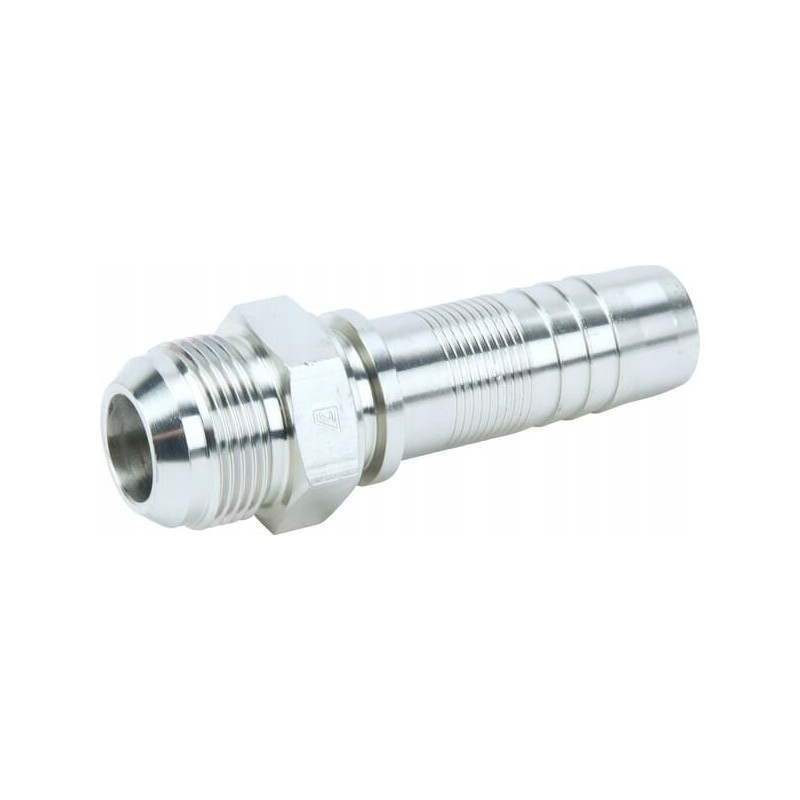

Hose tip agj ns jic dn25 1 5 16

AGJ-NS JIC hose end, DN25 1-5/16' Parameters

Part Number: AGJNS2521

Unit: Piece

Manufacturer: Alfagomma

Shape: Straight - 2 Sides Connection

Connector Type #1: Thread

Connector Type #1 - Male/Female: Male

Connector #1 Diameter: 1 inch

Connection Diameter: 25 mm

Connector Thread Diameter: 1-5/16 inch

Connector Type No. 2: Hose Barb

Connector Type No. 2 - Male/Female: Male

Connection Diameter No. 2: 1 inch

Product description

Alfagomma No-Skive compression fittings (NS type) are designed for use with Alfabiotech high-pressure hoses.

Advantages

- Compression fittings enable quicker and easier crimping of hoses, helping to save costs.

- During this process, less pollution, waste and unpleasant odors are produced.

- No special tools are needed for cutting hoses.

Product details

- Alfagomma No-Skive compression fittings are used for Alfabiotech high-pressure hoses.

- Thanks to the use of these tips, there is no need to cut the outer and inner layers of the hose.

Dimension from the axis of the joint to the end of the next joint 45.5mm
