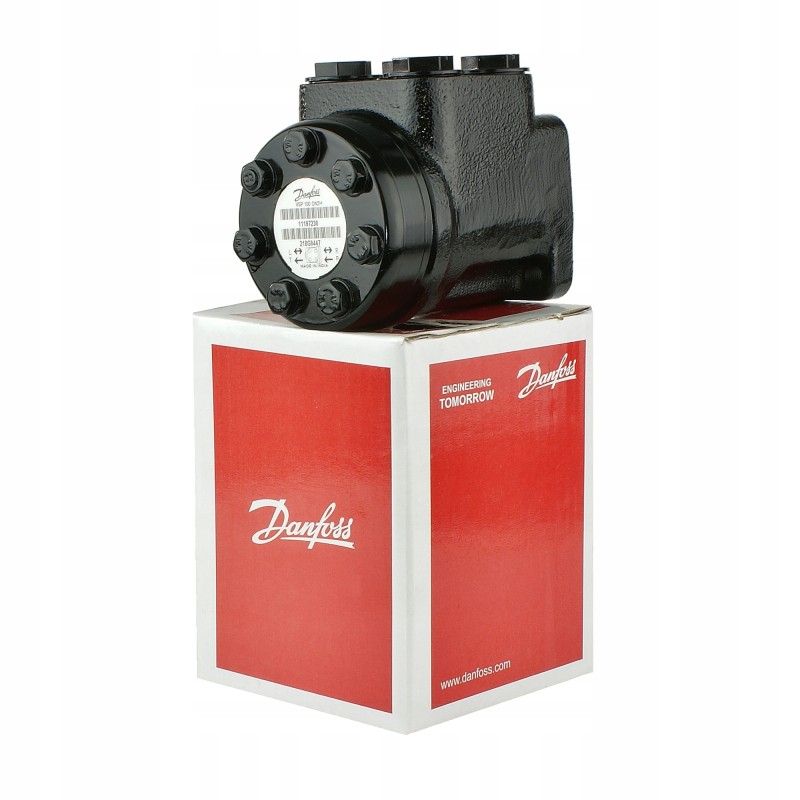

Orbitrol ospc 100 on 150n2151 original danfoss

ORBITROL OSPC 100 ON DANFOSSProduction:

Produced by the world leader in orbitrol manufacturers, Danfoss, in their own factory in India.

Manufacturer's symbols: 150N2151, VSP 100 ON2H, 1.06.00.100.2< p>

Comparison numbers of other manufacturers:

OSPC-100-ON, OSPC100ON, 5050871380, 7019756M91

Application:

It has a wide range of applications in systems steering in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 100 ON intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines etc.

Application in tractors:

URSUS: C-330, C-360, C-360-3P, 3512, 3502

MTZ: 80, 82, T-25

ZERO: 5211, 7211, 7045, 7245

CASE IH AVJ: 55, 60, 70, JX 55, 60, 65, 70, 75, 80 , 85, 90, 95, VJ 60, 70, 80

FIAT: 55-46, 60-46, 65-46, 55-56, 60-56, 65-56, 70-56, 55-66, 60-66, 65-66, 70-66 80-66, 55-88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90 , 70-90, 80-90, 90-90, 100-90, 110-90, 60-93, 65-93, 60-94, 65-94, F 100, 110, 130

MASSEY FERGUSON: 230, 240, 253, 255, 261, 263, 340, 342, 350, 352, 355, 360, 362, 365, 372, 375, 382, 390,396, 398, 399, 265, 275, 3275E, 285 , 290, 290E, 298, 375E, 390E, 675, 690, 698, 698T, 699,

NEW HOLLAND TD: 5040, 5050, 55D, 60D, 65D, 70D, 75D, 80D, 85D, 90D, 95D

RENAULT: 58-32ME, 58-32MA, 58-32MS, 58-32MX, 75-32TX, 75-34TX, 85-32TX, 85-34TX, 90-32TX, 90- 34TX, 650MI, 750MI, 754MI, 850MI, 854MI, 900MI, 904MI, 950MI, 954MI, 1032-54TS, 103-54TX, 103-54TE, 103-54TA, 106-54TS, 106-54TX, 106-54TE , 106- 54TA

RENAULT CERES: 65, 70, 70X, 75, 75X, 85, 85X, 95, 95X, 310, 320, 320X, 330, 330X, 340, 340X, 325X, 335X, 345X, 355X

RENAULT CERGOS: 330, 340, 350, 345, 355,

CLAAS CELTIS: 426RA, 426RC, 426RX, 436RC, 436RX, 446RA, 446RC, 446RX, 456RA, 456RC, 456RX

DEAR CUSTOMER, READ THIS BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise and important device for traffic safety, unfortunately there are many cheap products from China on the market that at first glance look the same, but imprecise workmanship prevents proper driving and operation of the tractor. We do not recommend the cheapest orbitrols from unreliable sources from sellers who have no experience in selling this type of devices.

Orbitrol technical data:

Orbitrol 100 with the ON (OPEN NORMALLY) system, while when the steering wheel is standing, the oil circulates in the system all the time and freely passes through the orbitrol, the return line to the tank, the pump then works, but is unloaded.

Connections: P, T, A, B internal threads [BSP] : 1/2'

Steering column mounting: 4x M10 screw - 16mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 100cm3/rev.

Recommended oil flow in the system: from 8 to 12L/min.

Material: cast iron

Drawing with full dimensions (photo):

Advantages of Danfoss orbitrols:

Very high quality Orbitrol for very demanding customers

special, reinforced and even more precisely made The design ensures perfect operation without leaks, without steering wheel jerking and what most importantly, very light and smooth control even in very loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation.

Manufactured in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC ON orbitrol (photo):
