Manifold 40l, 1 section, Ursus C 330, external

External distributor kit, 1-section, flexible cables C-330 C-330M 42371010 MIZAR number: 65341

External distributor kit, 1-section, flexible cables C-330 C-330M 42371010

Application: Ursus C-330, C-330M

Comparator number: 42371010

CA18-029 external distributor kit for the C-330 and C-330M tractor, replacing the traditional lift distributor mounted under the seat.< p>

It is mounted on the fender, making it more accessible to the operator.

Single-section - allows you to control the hydraulic lift.

Distributor levers 'without latches' when released, the lever returns to the 'zero' position.

Version without a floating section - in the neutral position, the lift is rigidly locked.

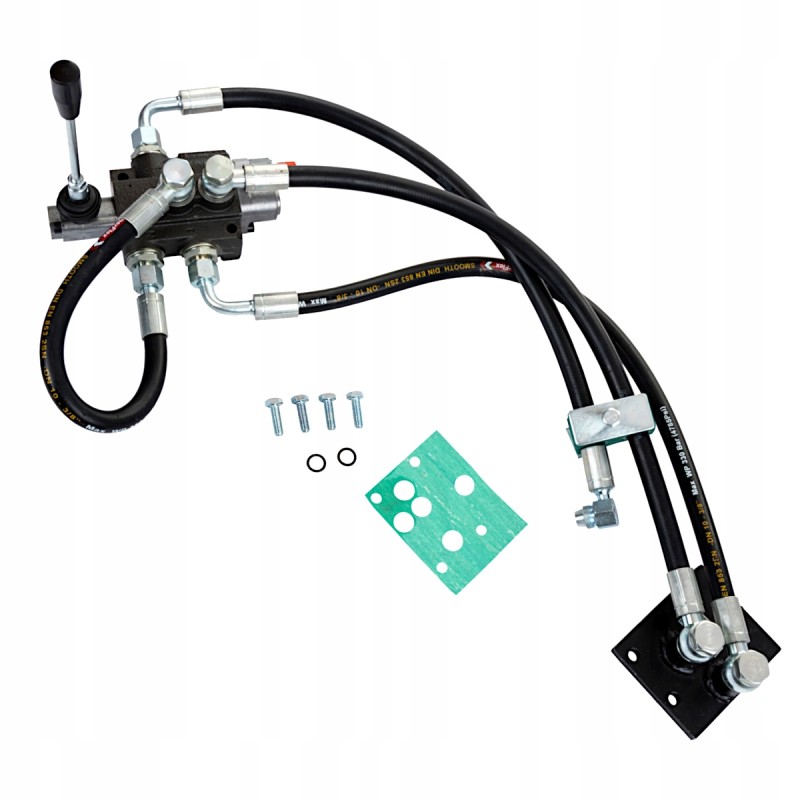

The set includes:

single-section distributor type P40 A1 GkZ1-11 Badestnost,

connection adapter mounted in place of the factory manifold,

gasket and 2 O-rings for the adapter,

set of hydraulic hoses for connecting the manifold with the adapter,

adapter mounting screws

To facilitate installation on the machine, the set is pre-assembled. After installation, make sure that all connections are well tightened.

The distributor's configuration has been prepared to support the factory lift actuator (single-acting actuator), therefore the manifold has a bypass from one of the section outputs .

MIZAR number: 65341
